Flat Board Support for Chassis, Nylon 66 Material, UL94V-0 Compliant
Flat Board Support for Chassis, Nylon 66 Material, UL94V-0 Compliant
SKU:01C-eeab91
Securely support circuit boards with the Flat Board Support for Chassis, made of Nylon 66 material. UL94V-0 compliant and RoHS certified.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Flat Board Support for Chassis, Nylon 66 Material, UL94V-0 Compliant
$29.99
Quantity: 1
Claim Your Seller Account
Flat Board Support for Chassis, Nylon 66 Material, UL94V-0 Compliant
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

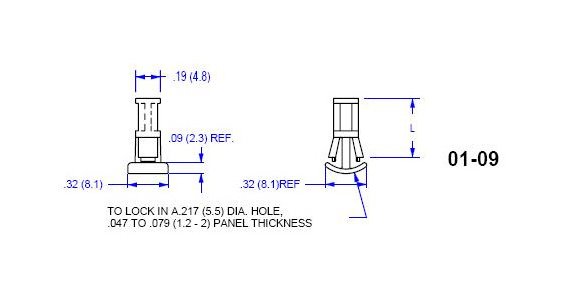

The 09 Series: Flat Board Support x .217 Chassis Hole is designed to securely support circuit boards within a chassis thickness range of .047-.079 inches. Crafted from Nylon 66 material, this support post offers easy installation from the chassis underside with reliable lock-in functionality while allowing for quick release. With minimal protrusion under the chassis, it ensures a tidy assembly. This product comes in a pack of 500 in black color, meeting RoHS standards and offering UL94V-0 compliance for enhanced safety. Its temperature range of -40 to 185F (-40 to 85C) ensures versatile applicability.
Product Specifications
Specifications Chassis Thickness
.047 - .079 (1.2 - 2.0) inches (mm)
Specifications Dim L
.394 (10.0) inches (mm)
Specifications Fig No
1
Specifications Material Code
UL94V-0
