Flat Board Support for Circuit Boards | Chassis Hole .217 | 09 Series
Flat Board Support for Circuit Boards | Chassis Hole .217 | 09 Series
SKU:01C-400557
Secure flat board support for circuit boards with .217 chassis hole, UL94V-2 material, and temperature range -40 to 185F.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
Flat Board Support for Circuit Boards | Chassis Hole .217 | 09 Series
$24.99
Quantity: 1
Claim Your Seller Account
Flat Board Support for Circuit Boards | Chassis Hole .217 | 09 Series
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

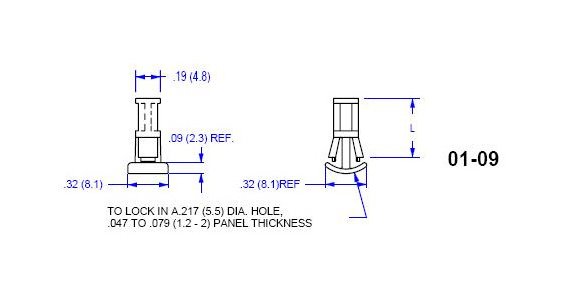

The 09 Series Flat Board Support x .217 Chassis Hole is designed for easy installation on chassis with thickness ranging from .047" to .079". Crafted from Nylon 66 UL94V-2 material, this support post ensures a secure yet releasable lock with minimal protrusion under the chassis. Compliant with UL File No. E53664, ASTM D 4066, and RoHS standards, this black-colored support post is ideal for applications requiring a temperature range of -40 to 185F (-40 to 85C). Enhance your circuit board assembly with this durable and versatile solution.
Product Specifications
Specifications Chassis Thickness
.047 - .079 (1.2 - 2.0) inches (mm)
Specifications Dim L
.197 (5.0) inches (mm)
Specifications Fig No
2
Specifications Material Code
UL94V-2
