Flat Board Support for Circuit Boards with .217 Chassis Hole

Name: Flat Board Support for Circuit Boards with .217 Chassis Hole
Brand: All Electronics Hardware
SKU: 01C-a7e966
Price: 29.99 USD
Availability: OutOfStock

SKU:01C-a7e966

Secure and easily install circuit board supports with the 08 Series Flat Board Support x .217 Chassis Hole for reliable performance within specified temperature ranges.

$29.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

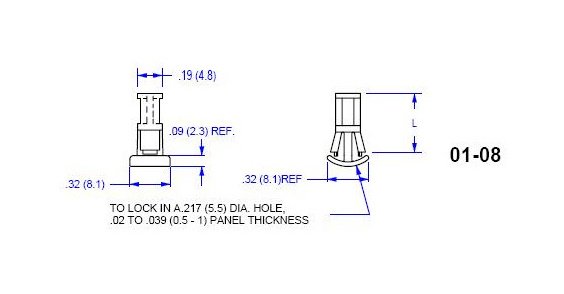

The 08 Series Flat Board Support x .217 Chassis Hole is a top-quality reverse PCB post designed for chassis thicknesses ranging from .020 to .039 inches. Featuring easy installation from the chassis underside, this support locks securely while remaining easily releasable. Constructed from Nylon 66 UL94V-2 material (UL94V-0 available), it ensures minimal protrusion under the chassis. RoHS compliant and meeting ASTM D 4066 and PA0113 standards, this support has a temperature range of -40 to 185F (-40 to 85C), making it ideal for a wide range of applications.

Product Specifications

Specifications Chassis Thickness

.020 - .039 (0.5 - 1.0) inches (mm)

Specifications Color

White

Specifications Dim L

.709 (18.0) inches (mm)

Specifications Fig No

Specifications Material Code

UL94V-0

Flat Board Support for Circuit Boards with .217 Chassis Hole
