Flat Board Support for PCB - Chassis Hole .217 - 09 Series
Flat Board Support for PCB - Chassis Hole .217 - 09 Series
SKU:01C-22ccdb
Securely support circuit boards with the 09 Series Flat Board Support for chassis thickness .047-.079. Easy to install, lockable design, RoHS compliant, and ASTM D 4066, PA0113 standards.
Regular price
$12.99
Regular price
Sale price
$12.99
Unit price
per
Initiate Order
Flat Board Support for PCB - Chassis Hole .217 - 09 Series
$12.99
Quantity: 1
Claim Your Seller Account
Flat Board Support for PCB - Chassis Hole .217 - 09 Series
$12.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

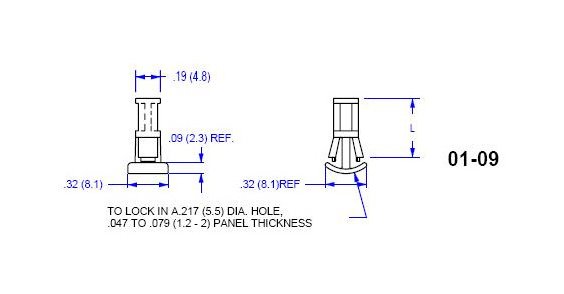

The 09 Series Flat Board Support x .217 Chassis Hole is designed to securely support circuit boards within a chassis thickness range of .047-.079 inches. Made of Nylon 66 UL94V-2 material (UL94V-0 available), this support features an easy installation process from the chassis underside, ensuring a secure yet releasable lock mechanism. With minimal protrusion under the chassis, this black support is RoHS compliant and withstands temperatures from -40 to 185F. It meets ASTM D 4066, PA0113 standards, offering durability and reliability for various applications.
Product Specifications
Specifications Chassis Thickness
.047 - .079 (1.2 - 2.0) inches (mm)
Specifications Dim L
.197 (5.0) inches (mm)
Specifications Fig No
2
Specifications Material Code
UL94V-0
