Flat Board Support Push Spacer for Circuit Boards (.100" Hole, Nylon 66)

Name: Flat Board Support Push Spacer for Circuit Boards (.100" Hole, Nylon 66)
Brand: All Electronics Hardware
SKU: 01C-d0bddc
Price: 39.99 USD
Availability: OutOfStock

SKU:01C-d0bddc

Enhance PCB assembly with the 29 Series Flat Board Support featuring .100" hole, Nylon 66 material, and teardrop head design. RoHS compliant and UL94V-2 certified.

$39.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

Upgrade your circuit board assembly with the 29 Series Flat Board Support Push Spacer. This board support features a teardrop head design with a .100-inch hole diameter, ideal for securely mounting PCBs. Made of durable Nylon 66 material, this spacer is UL94V-2 compliant for reliable performance in a wide temperature range (-40 to 185F). RoHS compliant and available in natural color, this pack of 1000 spacers ensures efficient installations. Add UL94V-0 by including an "X" at the end of the part number for enhanced flame resistance. Trust the E70062 UL File No. and ASTM D 4066, PA111 certification for quality assurance.

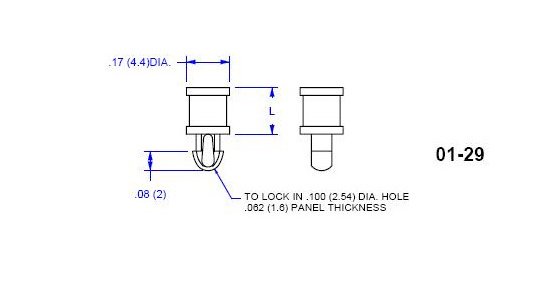

Product Specifications

Specifications Dim L

.563 (14.3) inches (mm)

Specifications Hole Diameter

.100 (2.54) inches (mm)

Specifications Material Code

UL94V-2

Specifications Panel Thickness

.064 (1.63) inches (mm)
