Flat Board Support Push Spacer x .100 Chassis Hole (Pack of 1000)

Name: Flat Board Support Push Spacer x .100 Chassis Hole (Pack of 1000)
Brand: All Electronics Hardware
SKU: 01C-98ed21
Price: 39.99 USD
Availability: OutOfStock

SKU:01C-98ed21

Get stability and durability with the 29 Series Flat Board Support Push Spacer for PCB mounting. Pack of 1000, RoHS compliant.

$39.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

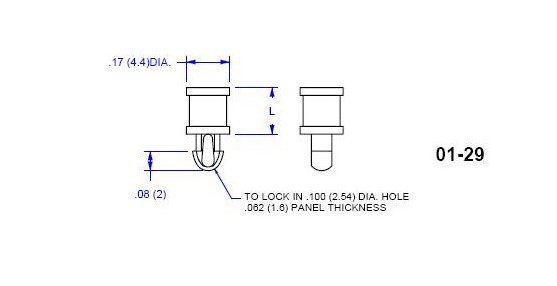

The 29 Series Flat Board Support Push Spacer is designed for seamless printed circuit board (PCB) mounting. With a teardrop head and a precise .100-inch hole diameter, these spacers ensure secure and stable PCB installation. Made of Nylon 66 UL94V-2 material, these spacers offer durability and reliability. They are RoHS compliant and have a temperature range of -40 to 185F (-40 to 85C). Add the 'X' to the part number for UL94V-0 material option. Each pack contains 1000 spacers for efficient use in bulk applications.

Product Specifications

Specifications Dim L

.750 (19.1) inches (mm)

Specifications Hole Diameter

.100 (2.54) inches (mm)

Specifications Material Code

UL94V-2

Specifications Panel Thickness

.064 (1.63) inches (mm)

Flat Board Support Push Spacer x .100 Chassis Hole (Pack of 1000)
