Flat Board Support with .217 Chassis Hole
Flat Board Support with .217 Chassis Hole
SKU:01C-b4be10
Secure and durable Flat Board Support for circuit boards in various applications. ASTM and RoHS compliant.
Regular price
$12.99
Regular price
Sale price
$12.99
Unit price
per
Initiate Order
Flat Board Support with .217 Chassis Hole
$12.99
Quantity: 1
Claim Your Seller Account
Flat Board Support with .217 Chassis Hole
$12.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

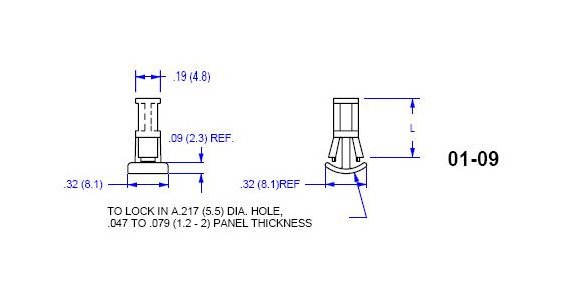

The 09 Series Flat Board Support with .217 Chassis Hole is a reliable solution for securing circuit boards in a variety of applications. Designed for chassis thickness ranging from .047 to .079 inches, this support post ensures a secure yet releasable installation. Made of Nylon 66 UL94V-2 material (UL94V-0 available), it guarantees durability and safety. With minimal protrusion under the chassis, it maintains a sleek profile. This product is ASTM and RoHS compliant, with a temperature range of -40 to 185F, making it suitable for a wide range of environments.
Product Specifications
Specifications Chassis Thickness
.047 - .079 (1.2 - 2.0) inches (mm)
Specifications Dim L
.320 (8.0) inches (mm)
Specifications Fig No
1
Specifications Material Code
UL94V-0
