Flat Bottom High Pressure Male/Female Adapters

Name: Flat Bottom High Pressure Male/Female Adapters
Brand: Linemaster Switch Corp.
SKU: HER-9be413
Price: 29.99 USD
Availability: OutOfStock

SKU:HER-9be413

Enhance connections with our precision-machined stainless steel Male/Female Adapters for seamless adaptability between connection types/sizes.

$29.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

Upgrade your fluid system connections with our precision-machined Flat Bottom High Pressure Male/Female Adapters. Engineered to seamlessly adapt female connections to different sizes/types, enhancing efficiency and reducing the need for additional couplings. Crafted from coldworked Type 316 stainless steel, ensuring durability and reliability in demanding environments. Explore our range of adapters compatible with Autoclave UniVersa-Lok connections, socketweld to O.D. tube or nominal pipe sizes, AN connections, and more.

Product Specifications

Specifications Circuit

DPDT DB

Specifications Constructionstandards

NEMA Type 2, 4 & 13UL Enclosure 2, 4 & 13CSA Enclosure 2, 4 & 13EN 60529 Degree of Protection IP56

Specifications Electrical Rating

Heavy pilot duty 250 Vac max. | 1/2 H.P. 125 VAC | 1 H.P. 250 VAC | 15A 125-250 VAC

Specifications Features

DriptightDusttightWatertightOiltight

Specifications Form

Specifications Note

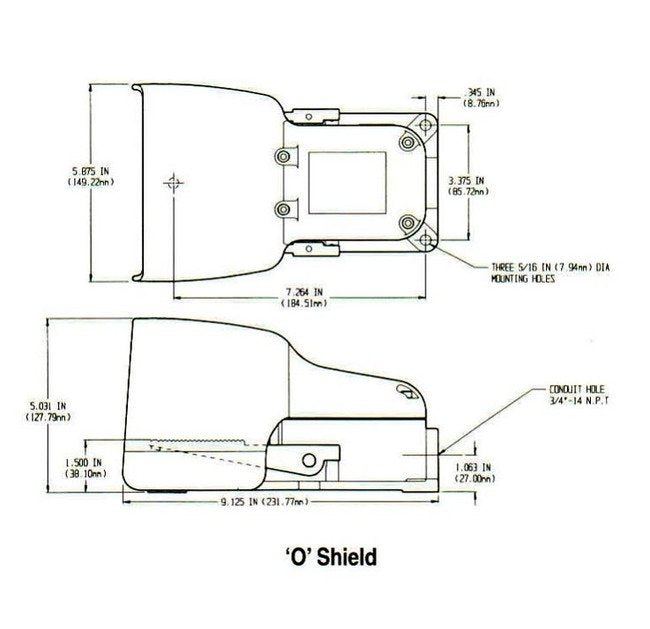

S-Denotes Momentary Contact-Press to start - release to stop, D-Denotes Maintained Contact-Press to start - Release Latch to stop, O-Denotes oversize O-shield models which accept oversized safety shoes and metatarsal foot guards.

Specifications Remarks

DB Double break model must be wired to equal voltage sources and the same polarity. The loads should be on the same sides of the line.

Specifications Size

9 x 5 3/4 x 4 3/4 Inch

Specifications Stages

Single

Specifications Weight Approx

8 lbs
