Flat Faced Slip-On Flanges JIS 16K Steel - 650mm (26")

Name: Flat Faced Slip-On Flanges JIS 16K Steel - 650mm (26")
Brand: World Wide Metric, Inc.
SKU: FLA-f6ccb3
Price: 349.99 USD
Availability: OutOfStock

SKU:FLA-f6ccb3

High-quality Flat Faced Slip-On Flanges JIS 16K Steel - Ensures secure, leak-free connections. Reliable & durable for industrial piping.

$349.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

Our Flat Faced Slip-On Flanges JIS 16K Steel in size 650mm (26") provide exceptional reliability and durability for industrial piping systems. Made of high-quality carbon steel, these flanges are designed to withstand JIS 16K pressure ratings, ensuring secure joints and leak-free connections. With precise dimensions and 24 bolts for enhanced stability, our slip-on flanges streamline installation and maintenance processes, ideal for diverse applications requiring robust performance.

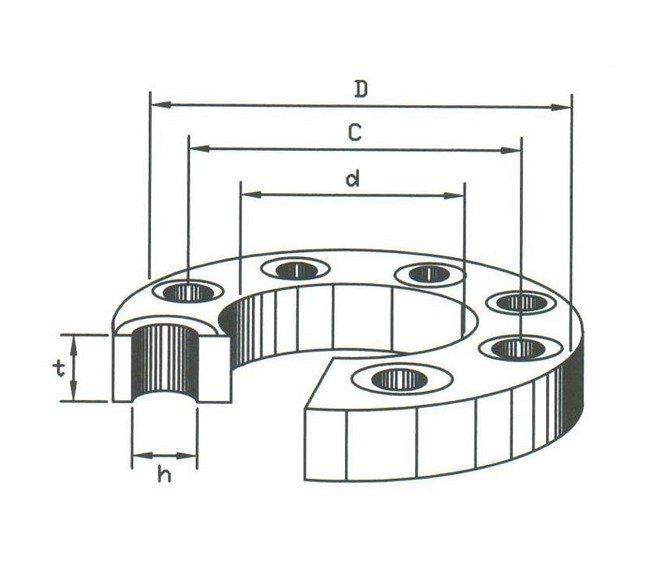

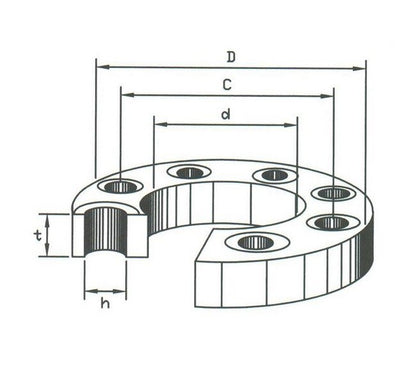

Product Specifications

Specifications C

820 mm

Specifications D

895 mm

Specifications H

39 mm

Specifications Material

Carbon Steel

Specifications Number Of Bolts

Specifications Pressure

JIS 16K

Specifications Size

650 - 26"

Specifications T

48 mm

Specifications Type

Slip-On

Specifications Weight

96.30 kg

Flat Faced Slip-On Flanges JIS 16K Steel - 650mm (26")
