Flat Pack Power Transformer FP24-500
Flat Pack Power Transformer FP24-500
SKU:POW-8791b5
Reliable Flat Pack Power Transformer with UL recognized materials & RoHS compliance. Versatile & safe solution for various applications.
Regular price
$59.99
Regular price
Sale price
$59.99
Unit price
per
Initiate Order
Flat Pack Power Transformer FP24-500
$59.99
Quantity: 1
Claim Your Seller Account
Flat Pack Power Transformer FP24-500
$59.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Flat Pack Power Transformer FP24-500 is a reliable and durable solution designed for various applications. With an electrical rating of 12.0 V·A, and multiple voltage options including 24.0 V CT at 0.5 A and 12.0 V at 1.0 A, this transformer offers versatility and performance. Constructed with UL recognized materials and meeting stringent safety standards including 100% dielectric strength testing at 2 KVAC, this transformer ensures quality and compliance. Additionally, RoHS compliant and certified with UL and cUL standards, the Flat Pack Power Transformer FP24-500 is a trusted choice for your power needs.
Product Specifications
Specifications Agency File
UL: File E53148, UL 506, Class B General Purpose Transformer,cUL: File E53148, UL 506, Class B General Purpose Transformer, Canadian Use
Specifications Construction
Wound on two dual channel nylon bobbin. Materials are UL recognized, Class B (130º C) rated.

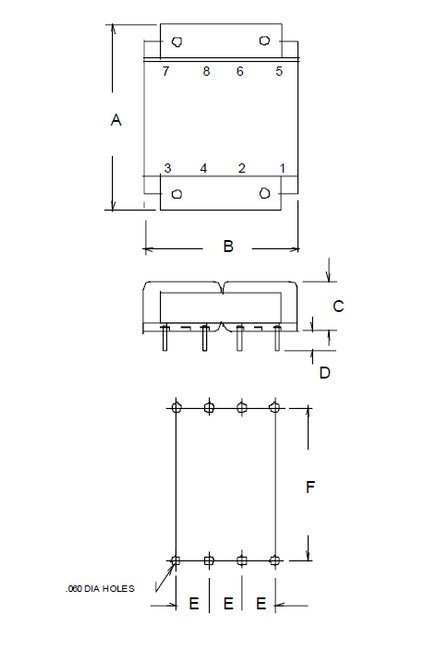

Specifications Dimension A
2.500 in
Specifications Dimension B
2.00 in
Specifications Dimension C
1.062 in
Specifications Dimension D
0.267 in
Specifications Dimension E
0.500 in
Specifications Dimension F
2.00 in
Specifications Dimension H
1.062 in
Specifications Dimension L
2.500 in
Specifications Dimension W
2.000 in
Specifications Electrical Rating
12.0 V·A
Specifications Mounting Length
2.0 in
Specifications Mounting Width
1.0 in
Specifications Pin Dimension
0.020 x 0.041 in
Specifications Primary Frequency
50 Hz | 60 Hz
Specifications Primary Voltage
115 V | 230 V
Specifications Rms Hi Pot Tested
2,000 V
Specifications Rohs Compliance
As of manufacturing date February 2016, all standard products meet the requirements of 2015/863/EU, known as the RoHS 3 initiative.
Specifications Safety
These products are 100% tested for dielectric strength at 2 KVAC, 60 Hz between primary and secondary windings and between the primary/secondary windings and the core.

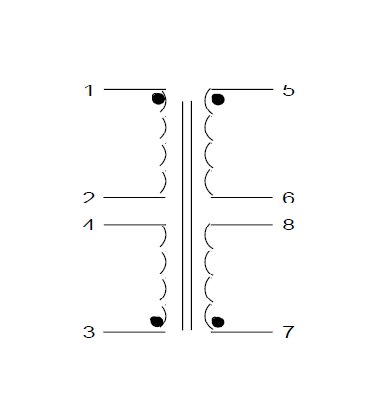

Specifications Transformer Contact Type
Center Tap
Specifications Voltage In Parallel
12.0 V at 1.0 A
Specifications Voltage In Series
24.0 V CT at 0.5 A
Specifications Weight
11.0 oz
Technical Notes 0
Hi-pot tested at 2,000 VRMS.Split bobbin with side-by-side windings to reduce capacitance and eliminate the need for a static shield.Mounting Holes: 2.5 VA & 6VA = 0.125"; 12 VA = 0.165"; 24 VA = 0.157"; 48 VA = 0.20"
