Flat Pack Power Transformers
Flat Pack Power Transformers
SKU:POW-f5c221
Reliable FP12-200 Flat Pack Power Transformers with UL recognized materials & RoHS compliance. Ideal for institutional and government buyers.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
Flat Pack Power Transformers
$49.99
Quantity: 1
Claim Your Seller Account
Flat Pack Power Transformers
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

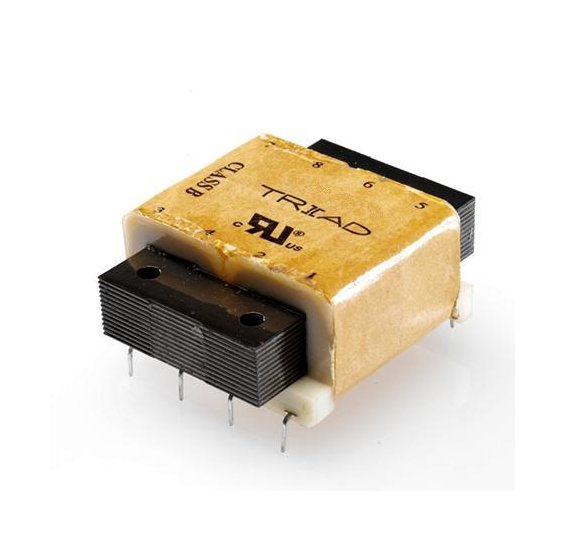

The FP12-200 Flat Pack Power Transformer series offers a history of reliable service and durability with a proven design. Constructed using UL recognized materials and designed with precision, these transformers provide excellent performance. With electrical ratings of 2.5 VA and a primary voltage of 115V/230V at 50Hz/60Hz, they ensure efficient power distribution. Safety is paramount, with 100% testing for dielectric strength meeting UL and cUL standards. RoHS compliant and constructed for longevity, these transformers are ideal for institutional and government procurement.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Specifications Agency File
UL: File E53148, UL 506, Class B General Purpose Transformer,cUL: File E53148, UL 506, Class B General Purpose Transformer, Canadian Use
Specifications Construction
Wound on two dual channel nylon bobbin. Materials are UL recognized, Class B (130º C) rated.

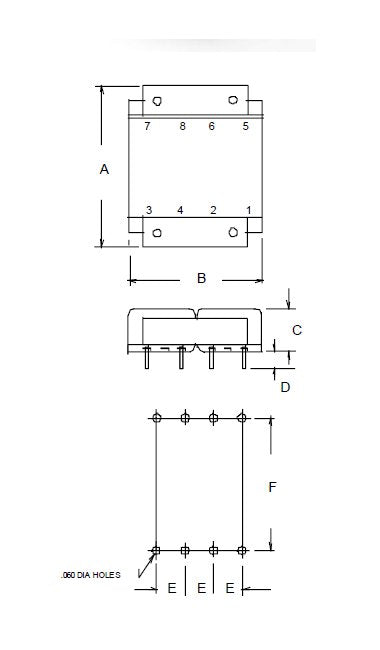

Specifications Dimension A
1.875 in
Specifications Dimension B
1.562 in
Specifications Dimension C
0.650 in
Specifications Dimension D
0.267 in
Specifications Dimension E
0.375 in
Specifications Dimension F
1.600 in
Specifications Dimension H
0.650 in
Specifications Dimension L
1.875 in
Specifications Dimension W
1.562 in
Specifications Electrical Rating
2.5 V·A
Specifications Mounting Length
1.62 in
Specifications Mounting Width
0.88 in
Specifications Pin Dimension
0.020 x 0.041 in
Specifications Primary Frequency
50 Hz | 60 Hz
Specifications Primary Voltage
115 V | 230 V
Specifications Rms Hi Pot Tested
2,000 V
Specifications Rohs Compliance
As of manufacturing date February 2016, all standard products meet the requirements of 2015/863/EU, known as the RoHS 3 initiative.
Specifications Safety
These products are 100% tested for dielectric strength at 2 KVAC, 60 Hz between primary and secondary windings and between the primary/secondary windings and the core.
Specifications Transformer Contact Type
Center Tap
Specifications Voltage In Parallel
6.3 V at 0.4 A
Specifications Voltage In Series
12.6 V CT at 0.2 A
Specifications Weight
5.0 oz
Technical Notes 0
Hi-pot tested at 2,000 VRMS.Split bobbin with side-by-side windings to reduce capacitance and eliminate the need for a static shield.Mounting Holes: 2.5 VA & 6VA = 0.125"; 12 VA = 0.165"; 24 VA = 0.157"; 48 VA = 0.20"
