Flat Pack Power Transformers
Flat Pack Power Transformers
SKU:POW-5fcb2c
Reliable and versatile PC Mount Flat Pack™ Power Transformers with UL recognized materials, available in various voltage options and high safety standards.
Regular price
$39.99
Regular price
Sale price
$39.99
Unit price
per
Initiate Order
Flat Pack Power Transformers
$39.99
Quantity: 1
Claim Your Seller Account
Flat Pack Power Transformers
$39.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The PC Mount Flat Pack™ Power Transformers, like the FP20-125 model, boast a track record of reliable service in the industry. Constructed with UL recognized materials and a proven design, these transformers offer an electrical rating of 2.5 V·A with various voltage options, a center tap transformer contact type, and high safety standards including 100% dielectric strength testing. With dimensions perfectly suited for mounting and efficient winding construction, these transformers are ideal for both consumer and institutional applications.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Specifications Agency File
UL: File E53148, UL 506, Class B General Purpose Transformer,cUL: File E53148, UL 506, Class B General Purpose Transformer, Canadian Use
Specifications Construction
Wound on two dual channel nylon bobbin. Materials are UL recognized, Class B (130º C) rated.

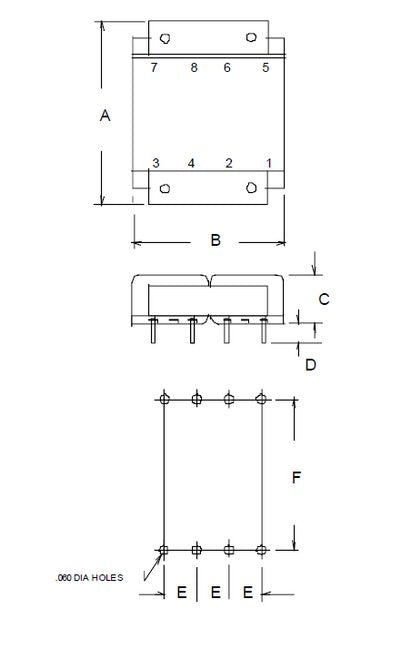

Specifications Dimension A
1.875 in
Specifications Dimension B
1.562 in
Specifications Dimension C
0.650 in
Specifications Dimension D
0.267 in
Specifications Dimension E
0.375 in
Specifications Dimension F
1.600 in
Specifications Dimension H
0.650 in
Specifications Dimension L
1.875 in
Specifications Dimension W
1.562 in
Specifications Electrical Rating
2.5 V·A
Specifications Mounting Length
1.62 in
Specifications Mounting Width
0.88 in
Specifications Pin Dimension
0.020 x 0.041 in
Specifications Primary Frequency
50 Hz | 60 Hz
Specifications Primary Voltage
115 V | 230 V
Specifications Rms Hi Pot Tested
2,000 V
Specifications Rohs Compliance
As of manufacturing date February 2016, all standard products meet the requirements of 2015/863/EU, known as the RoHS 3 initiative.
Specifications Safety
These products are 100% tested for dielectric strength at 2 KVAC, 60 Hz between primary and secondary windings and between the primary/secondary windings and the core.

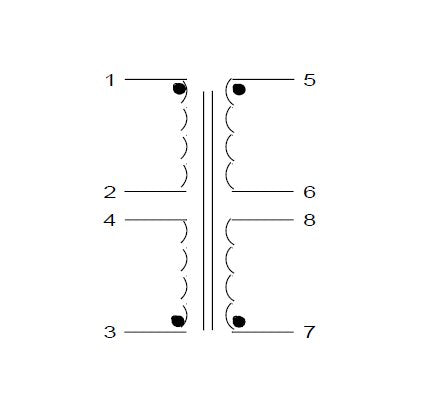

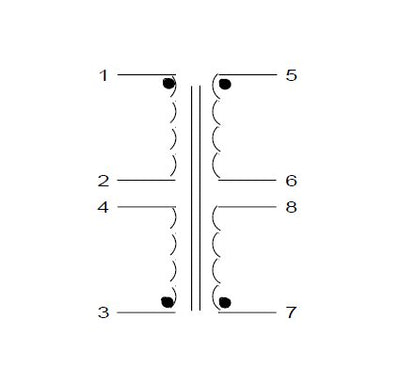

Specifications Transformer Contact Type
Center Tap
Specifications Voltage In Parallel
10.0 V at 0.25 A
Specifications Voltage In Series
20.0 V CT at 0.125 A
Specifications Weight
5.0 oz
Technical Notes 0
Hi-pot tested at 2,000 VRMS.Split bobbin with side-by-side windings to reduce capacitance and eliminate the need for a static shield.Mounting Holes: 2.5 VA & 6VA = 0.125"; 12 VA = 0.165"; 24 VA = 0.157"; 48 VA = 0.20"
