Flat Pack Power Transformers
Flat Pack Power Transformers
SKU:POW-1832f3
High-performance PC Mount Flat Pack⢠Power Transformers with UL recognized materials and RoHS compliance. Multiple voltage options available.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Flat Pack Power Transformers
$29.99
Quantity: 1
Claim Your Seller Account
Flat Pack Power Transformers
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The PC Mount Flat Pack⢠Power Transformers in the FP20-300 series are renowned for their long history of reliable service in the field. Constructed with UL recognized materials and a proven design, these transformers offer an electrical rating of 6.0 V·A and various voltage options suitable for a range of applications. With dimensions of 1.875"(A) x 1.562"(B) x 0.875"(C) and weighing 7.0 oz, these transformers are designed for efficiency and durability. They undergo rigorous RMS Hi Pot testing and comply with RoHS regulations for environmental sustainability.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Specifications Agency File
UL: File E53148, UL 506, Class B General Purpose Transformer,cUL: File E53148, UL 506, Class B General Purpose Transformer, Canadian Use
Specifications Construction
Wound on two dual channel nylon bobbin. Materials are UL recognized, Class B (130º C) rated.

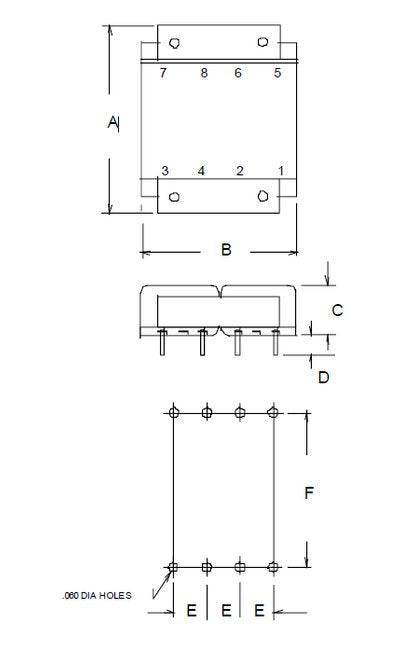

Specifications Dimension A
1.875 in
Specifications Dimension B
1.562 in
Specifications Dimension C
0.875 in
Specifications Dimension D
0.267 in
Specifications Dimension E
0.375 in
Specifications Dimension F
1.600 in
Specifications Dimension H
0.875 in
Specifications Dimension L
1.875 in
Specifications Dimension W
1.562 in
Specifications Electrical Rating
6.0 V·A
Specifications Mounting Length
1.62 in
Specifications Mounting Width
0.88 in
Specifications Pin Dimension
0.020 x 0.041 in
Specifications Primary Frequency
50 Hz | 60 Hz
Specifications Primary Voltage
115 V | 230 V
Specifications Rms Hi Pot Tested
2,000 V
Specifications Rohs Compliance
As of manufacturing date February 2016, all standard products meet the requirements of 2015/863/EU, known as the RoHS 3 initiative.
Specifications Safety
These products are 100% tested for dielectric strength at 2 KVAC, 60 Hz between primary and secondary windings and between the primary/secondary windings and the core.
Specifications Transformer Contact Type
Center Tap
Specifications Voltage In Parallel
10.0 V at 0.8 A
Specifications Voltage In Series
20.0 V CT at 0.3 A
Specifications Weight
7.0 oz
Technical Notes 0
Hi-pot tested at 2,000 VRMS.Split bobbin with side-by-side windings to reduce capacitance and eliminate the need for a static shield.Mounting Holes: 2.5 VA & 6VA = 0.125"; 12 VA = 0.165"; 24 VA = 0.157"; 48 VA = 0.20"
