Flat Pack Power Transformers
Flat Pack Power Transformers
SKU:POW-d22629
Reliable Flat Pack Power Transformers with UL recognized materials, 24 VA electrical rating, and RoHS compliant.
Regular price
$89.99
Regular price
Sale price
$89.99
Unit price
per
Initiate Order
Flat Pack Power Transformers
$89.99
Quantity: 1
Claim Your Seller Account
Flat Pack Power Transformers
$89.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Flat Pack Power Transformers from the PC Mount Flat Pack⢠series offer a reliable power solution with an electrical rating of 24 VA. These transformers feature dual channel nylon bobbins, UL recognized materials, and Class B construction, ensuring durability and performance. Tested for dielectric strength, these transformers meet UL and cUL standards, as well as RoHS compliance. With various voltage and current configurations, these transformers are versatile for different applications.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Specifications Agency File
UL: File E53148, UL 506, Class B General Purpose Transformer,cUL: File E53148, UL 506, Class B General Purpose Transformer, Canadian Use
Specifications Construction
Wound on two dual channel nylon bobbin. Materials are UL recognized, Class B (130º C) rated.

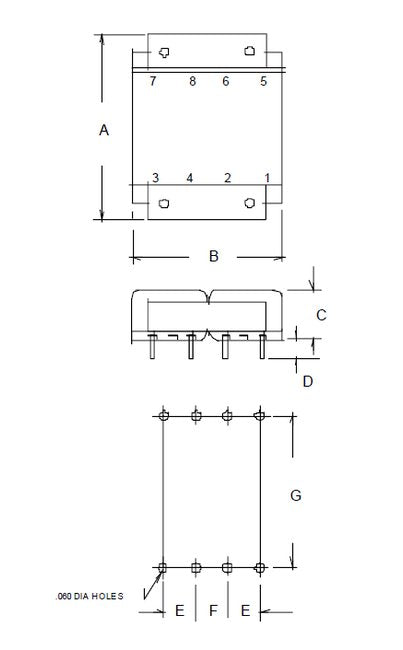

Specifications Dimension A
2.87 in
Specifications Dimension B
2.25 in
Specifications Dimension C
1.375 in
Specifications Dimension D
0.267 in
Specifications Dimension E
0.600 in
Specifications Dimension F
0.531 in
Specifications Dimension G
1.90 in
Specifications Dimension H
1.375 in
Specifications Dimension L
2.756 in
Specifications Dimension W
2.25 in
Specifications Electrical Rating
24 V·A
Specifications Mounting Length
2.44 in
Specifications Mounting Width
1.1 in
Specifications Pin Dimension
0.020 x 0.041 in
Specifications Primary Frequency
50 Hz | 60 Hz
Specifications Primary Voltage
115 V | 230 V
Specifications Rms Hi Pot Tested
2,000 V
Specifications Rohs Compliance
As of manufacturing date February 2016, all standard products meet the requirements of 2015/863/EU, known as the RoHS 3 initiative.
Specifications Safety
These products are 100% tested for dielectric strength at 2 KVAC, 60 Hz between primary and secondary windings and between the primary/secondary windings and the core.
Specifications Transformer Contact Type
Center Tap
Specifications Voltage In Parallel
10.0 V at 2.4 A
Specifications Voltage In Series
20.0 V CT at 1.2 A
Specifications Weight
15.0 oz
Technical Notes 0
Hi-pot tested at 2,000 VRMS.Split bobbin with side-by-side windings to reduce capacitance and eliminate the need for a static shield.Mounting Holes: 2.5 VA & 6VA = 0.125"; 12 VA = 0.165"; 24 VA = 0.157"; 48 VA = 0.20"
