Flat Pack Power Transformers
Flat Pack Power Transformers
SKU:POW-890611
Reliable PC Mount Flat Pack™ Power Transformers with UL recognized materials, center tap contact type, and RoHS compliance for exceptional performance and safety.
Regular price
$89.99
Regular price
Sale price
$89.99
Unit price
per
Initiate Order
Flat Pack Power Transformers
$89.99
Quantity: 1
Claim Your Seller Account
Flat Pack Power Transformers
$89.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

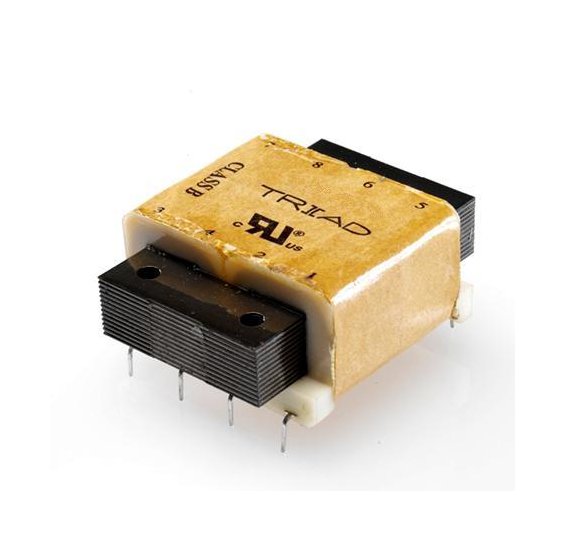

The PC Mount Flat Pack™ Power Transformers, exemplified by the FP34-1400 model, offer a history of reliable service with a design using UL recognized materials. These transformers provide electrical ratings of 48V·A, a unique center tap transformer contact type, and dimensions optimized for efficient use and installation. Designed with safety in mind, they undergo rigorous testing, meeting RoHS compliance regulations and are constructed using high-quality UL recognized materials.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Specifications Agency File
UL: File E53148, UL 506, Class B General Purpose Transformer,cUL: File E53148, UL 506, Class B General Purpose Transformer, Canadian Use
Specifications Construction
Wound on two dual channel nylon bobbin. Materials are UL recognized, Class B (130º C) rated.

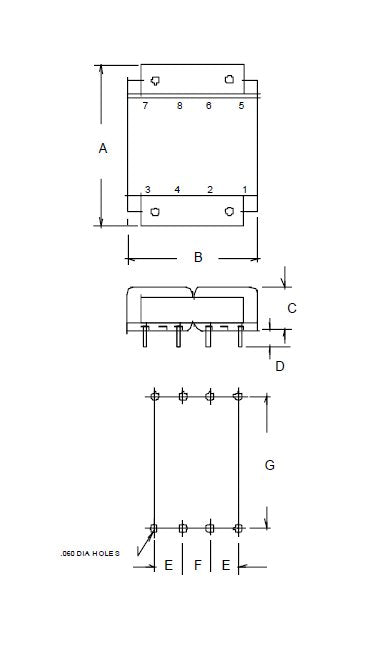

Specifications Dimension A
3.12 in
Specifications Dimension B
2.50 in
Specifications Dimension C
1.375 in
Specifications Dimension D
0.267 in
Specifications Dimension E
0.600 in
Specifications Dimension F
0.669 in
Specifications Dimension G
2.18 in
Specifications Dimension H
1.375 in
Specifications Dimension L
3.12 in
Specifications Dimension W
2.5 in
Specifications Electrical Rating
48 V·A
Specifications Mounting Length
2.52 in
Specifications Mounting Width
1.26 in
Specifications Pin Dimension
0.020 x 0.041 in
Specifications Primary Frequency
50 Hz | 60 Hz
Specifications Primary Voltage
115 V | 230 V
Specifications Rms Hi Pot Tested
2,000 V
Specifications Rohs Compliance
As of manufacturing date February 2016, all standard products meet the requirements of 2015/863/EU, known as the RoHS 3 initiative.
Specifications Safety
These products are 100% tested for dielectric strength at 2 KVAC, 60 Hz between primary and secondary windings and between the primary/secondary windings and the core.
Specifications Transformer Contact Type
Center Tap
Specifications Voltage In Parallel
17.0 V at 2.8 A
Specifications Voltage In Series
34.0 V CT at 1.4 A
Specifications Weight
21.0 oz
Technical Notes 0
Hi-pot tested at 2,000 VRMS.Split bobbin with side-by-side windings to reduce capacitance and eliminate the need for a static shield.Mounting Holes: 2.5 VA & 6VA = 0.125"; 12 VA = 0.165"; 24 VA = 0.157"; 48 VA = 0.20"
