Flat Pack Power Transformers FP10-4800
Flat Pack Power Transformers FP10-4800
SKU:POW-87aa13
Compact and reliable Flat Pack Power Transformers with 48 V·A rating, UL materials, and RoHS compliance for safe and efficient power distribution.
Regular price
$79.99
Regular price
Sale price
$79.99
Unit price
per
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.



The Flat Pack Power Transformers FP10-4800 series offers reliable performance in a compact design. With an Electrical Rating of 48 V·A and various Voltage options, these transformers provide efficient power distribution. Constructed with UL recognized materials and meeting RoHS compliance, they ensure safety and quality. Hi-Pot tested and featuring a split bobbin construction, these transformers are designed for durability and reduced capacitance. Perfect for applications requiring a Center Tap Contact Type and multiple voltage configurations.
Product Specifications
Specifications Agency File
UL: File E53148, UL 506, Class B General Purpose Transformer,cUL: File E53148, UL 506, Class B General Purpose Transformer, Canadian Use
Specifications Construction
Wound on two dual channel nylon bobbin. Materials are UL recognized, Class B (130º C) rated.

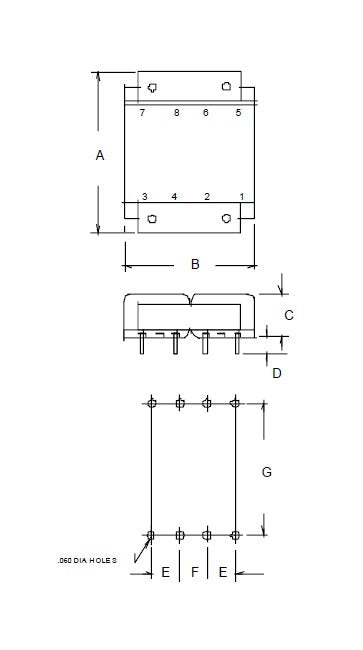

Specifications Dimension A
3.12 in
Specifications Dimension B
2.50 in
Specifications Dimension C
1.375 in
Specifications Dimension D
0.267 in
Specifications Dimension E
0.600 in
Specifications Dimension F
0.669 in
Specifications Dimension G
2.17 in
Specifications Dimension H
1.375 in
Specifications Dimension L
3.12 in
Specifications Dimension W
2.5 in
Specifications Electrical Rating
48 V·A
Specifications Mounting Length
2.52 in
Specifications Mounting Width
1.26 in
Specifications Pin Dimension
0.020 x 0.041 in
Specifications Primary Frequency
50 Hz | 60 Hz
Specifications Primary Voltage
115 V | 230 V
Specifications Rms Hi Pot Tested
2,000 V
Specifications Rohs Compliance
As of manufacturing date February 2016, all standard products meet the requirements of 2015/863/EU, known as the RoHS 3 initiative.
Specifications Safety
These products are 100% tested for dielectric strength at 2 KVAC, 60 Hz between primary and secondary windings and between the primary/secondary windings and the core.

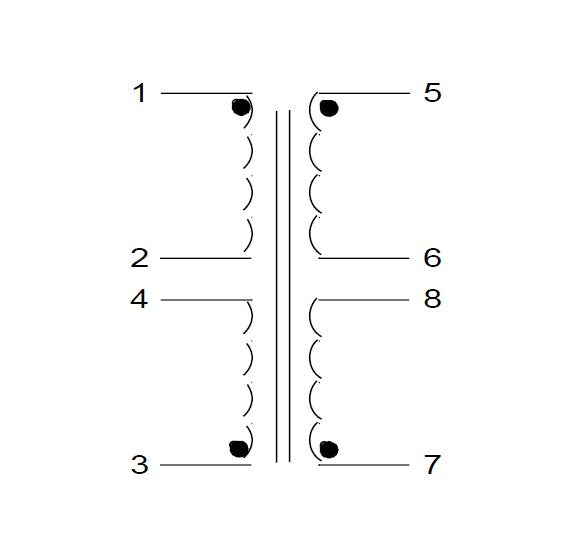

Specifications Transformer Contact Type
Center Tap
Specifications Voltage In Parallel
5.0 V at 9.6 A
Specifications Voltage In Series
10 V CT at 4.8 A
Specifications Weight
21.0 oz
Technical Notes 0
Hi-pot tested at 2,000 VRMS.Split bobbin with side-by-side windings to reduce capacitance and eliminate the need for a static shield.Mounting Holes: 2.5 VA & 6VA = 0.125"; 12 VA = 0.165"; 24 VA = 0.157"; 48 VA = 0.20"
