The Flat Pack Power Transformers FP12-1900 offers a reliable power solution designed for long-term performance in various applications. With an electrical rating of 24 V·A, this transformer features voltage options in series and parallel configurations, including a Center Tap for versatile connectivity. Constructed with UL recognized materials and rated at Class B (130º C), it ensures safety and durability. Hi-pot tested at 2,000 V, RoHS compliant, and meeting dielectric strength standards, this transformer is a trusted choice for efficient power conversion.
Product Specifications
Specifications Agency File
UL: File E53148, UL 506, Class B General Purpose Transformer,cUL: File E53148, UL 506, Class B General Purpose Transformer, Canadian Use
Specifications Construction
Wound on two dual channel nylon bobbin. Materials are UL recognized, Class B (130º C) rated.

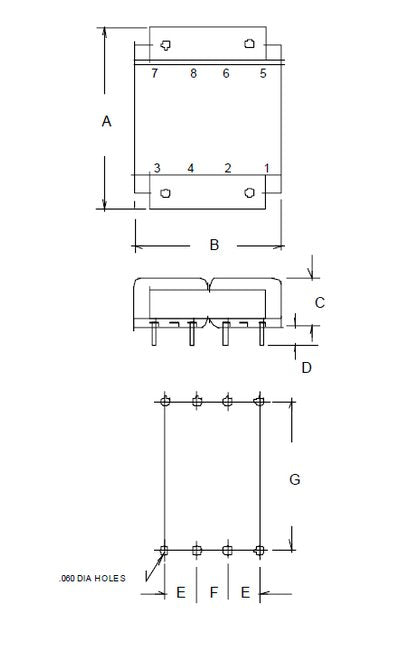

Specifications Dimension A
2.87 in
Specifications Dimension B
2.25 in
Specifications Dimension C
1.375 in
Specifications Dimension D
0.267 in
Specifications Dimension E
0.600 in
Specifications Dimension F
0.531 in
Specifications Dimension G
1.90 in
Specifications Dimension H
1.375 in
Specifications Dimension L
2.756 in
Specifications Dimension W
2.25 in
Specifications Electrical Rating
24 V·A
Specifications Mounting Length
2.44 in
Specifications Mounting Width
1.1 in
Specifications Pin Dimension
0.020 x 0.041 in
Specifications Primary Frequency
50 Hz | 60 Hz
Specifications Primary Voltage
115 V | 230 V
Specifications Rms Hi Pot Tested
2,000 V
Specifications Rohs Compliance
As of manufacturing date February 2016, all standard products meet the requirements of 2015/863/EU, known as the RoHS 3 initiative.
Specifications Safety
These products are 100% tested for dielectric strength at 2 KVAC, 60 Hz between primary and secondary windings and between the primary/secondary windings and the core.

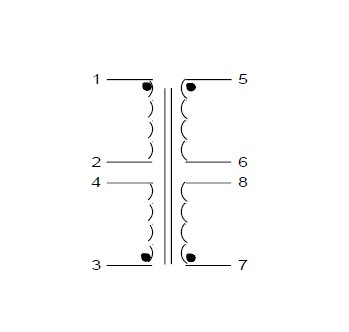

Specifications Transformer Contact Type
Center Tap
Specifications Voltage In Parallel
6.3 V at 3.8 A
Specifications Voltage In Series
12.6 V CT at 1.9 A
Specifications Weight
15.0 oz
Technical Notes 0
Hi-pot tested at 2,000 VRMS.Split bobbin with side-by-side windings to reduce capacitance and eliminate the need for a static shield.Mounting Holes: 2.5 VA & 6VA = 0.125"; 12 VA = 0.165"; 24 VA = 0.157"; 48 VA = 0.20"
