Flat Pack Power Transformers - FP12-950
Flat Pack Power Transformers - FP12-950
SKU:POW-863741
Reliable Flat Pack Power Transformer with multiple voltage options, UL recognized materials, and RoHS compliance for efficient and secure operation.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
Flat Pack Power Transformers - FP12-950
$49.99
Quantity: 1
Claim Your Seller Account
Flat Pack Power Transformers - FP12-950
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The FP12-950 Flat Pack Power Transformer is a reliable and durable solution designed for optimal performance in various applications. With an electrical rating of 12.0 VA, this transformer offers versatile voltage options including 12.6V CT at 0.95A and 6.3V at 1.9A. Constructed with UL recognized materials and meeting stringent safety standards, this transformer ensures efficient and secure operation. RoHS compliant and tested for dielectric strength, it guarantees reliability and adherence to industry regulations. Designed with precision and quality, the FP12-950 transformer is ideal for both consumer and institutional buyers seeking high-performance power solutions.
Product Specifications
Specifications Agency File
UL: File E53148, UL 506, Class B General Purpose Transformer,cUL: File E53148, UL 506, Class B General Purpose Transformer, Canadian Use
Specifications Construction
Wound on two dual channel nylon bobbin. Materials are UL recognized, Class B (130º C) rated.

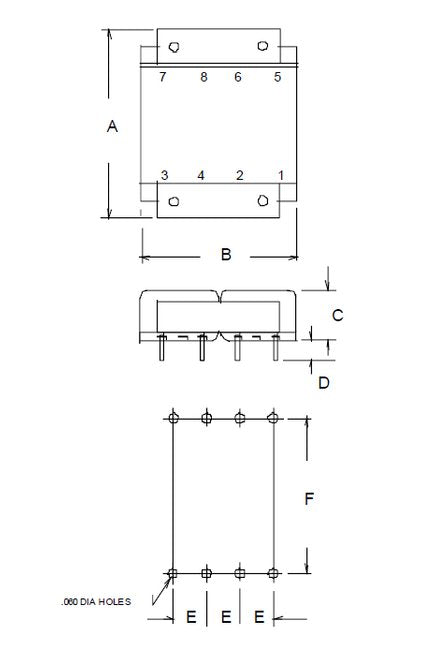

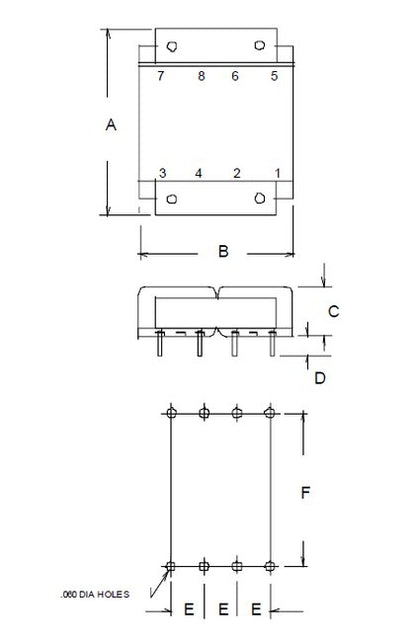

Specifications Dimension A
2.500 in
Specifications Dimension B
2.00 in
Specifications Dimension C
1.062 in
Specifications Dimension D
0.267 in
Specifications Dimension E
0.500 in
Specifications Dimension F
2.00 in
Specifications Dimension H
1.062 in
Specifications Dimension L
2.500 in
Specifications Dimension W
2.000 in
Specifications Electrical Rating
12.0 V·A
Specifications Mounting Length
2.0 in
Specifications Mounting Width
1.0 in
Specifications Pin Dimension
0.020 x 0.041 in
Specifications Primary Frequency
50 Hz | 60 Hz
Specifications Primary Voltage
115 V | 230 V
Specifications Rms Hi Pot Tested
2,000 V
Specifications Rohs Compliance
As of manufacturing date February 2016, all standard products meet the requirements of 2015/863/EU, known as the RoHS 3 initiative.
Specifications Safety
These products are 100% tested for dielectric strength at 2 KVAC, 60 Hz between primary and secondary windings and between the primary/secondary windings and the core.

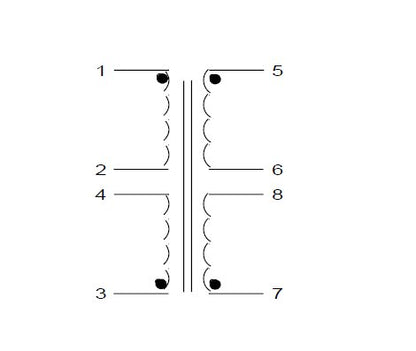

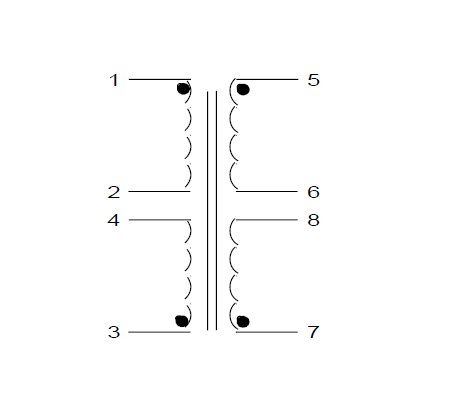

Specifications Transformer Contact Type
Center Tap
Specifications Voltage In Parallel
6.3 V at 1.9 A
Specifications Voltage In Series
12.6 V CT at 0.95 A
Specifications Weight
11.0 oz
Technical Notes 0
Hi-pot tested at 2,000 VRMS.Split bobbin with side-by-side windings to reduce capacitance and eliminate the need for a static shield.Mounting Holes: 2.5 VA & 6VA = 0.125"; 12 VA = 0.165"; 24 VA = 0.157"; 48 VA = 0.20"
