Experience reliability and safety with the FP120-20 PC Mount Flat Pack™ Power Transformer. UL recognized materials ensure high performance and RoHS compliance.
Regular price
$59.99
Regular price
Sale price
$59.99
Unit price
per
Initiate Order
Flat Pack Power Transformers - FP120-20
$59.99
Quantity: 1
Claim Your Seller Account
Flat Pack Power Transformers - FP120-20
$59.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The FP120-20 from the PC Mount Flat Pack™ Power Transformers series is a reliable power solution with an Electrical Rating of 2.5 VA. With a Voltage in Series of 120.0 V CT at 0.02 A and a Center Tap Transformer Contact Type, it ensures efficient power distribution. Constructed with UL recognized materials, it meets safety standards with Hi-Pot testing at 2 KVAC. RoHS compliant and designed for durability with Class B (130°C) rated materials.
Product Specifications
Specifications Agency File
UL: File E53148, UL 506, Class B General Purpose Transformer,cUL: File E53148, UL 506, Class B General Purpose Transformer, Canadian Use
Specifications Construction
Wound on two dual channel nylon bobbin. Materials are UL recognized, Class B (130º C) rated.

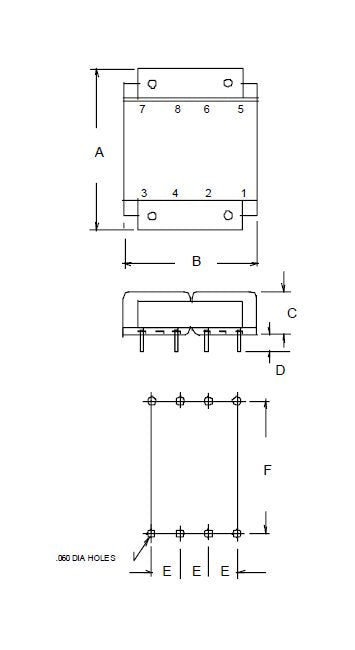

Specifications Dimension A
1.875 in
Specifications Dimension B
1.562 in
Specifications Dimension C
0.650 in
Specifications Dimension D
0.267 in
Specifications Dimension E
0.375 in
Specifications Dimension F
1.600 in
Specifications Dimension H
0.650 in
Specifications Dimension L
1.875 in
Specifications Dimension W
1.562 in
Specifications Electrical Rating
2.5 V·A
Specifications Mounting Length
1.62 in
Specifications Mounting Width
0.88 in
Specifications Pin Dimension
0.020 x 0.041 in
Specifications Primary Frequency
50 Hz | 60 Hz
Specifications Primary Voltage
115 V | 230 V
Specifications Rms Hi Pot Tested
2,000 V
Specifications Rohs Compliance
As of manufacturing date February 2016, all standard products meet the requirements of 2015/863/EU, known as the RoHS 3 initiative.
Specifications Safety
These products are 100% tested for dielectric strength at 2 KVAC, 60 Hz between primary and secondary windings and between the primary/secondary windings and the core.

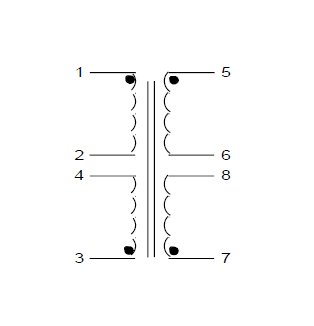

Specifications Transformer Contact Type
Center Tap
Specifications Voltage In Parallel
60.0 V at 0.04 A
Specifications Voltage In Series
120.0 V CT at 0.02 A
Specifications Weight
5.0 oz
Technical Notes 0
Hi-pot tested at 2,000 VRMS.Split bobbin with side-by-side windings to reduce capacitance and eliminate the need for a static shield.Mounting Holes: 2.5 VA & 6VA = 0.125"; 12 VA = 0.165"; 24 VA = 0.157"; 48 VA = 0.20"
