Flat Pack Power Transformers - FP120-50
Flat Pack Power Transformers - FP120-50
SKU:POW-66e664
Experience reliable power conversion with the FP120-50 Flat Pack Power Transformer. UL recognized materials, RoHS compliant, and tested for dielectric strength.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
Flat Pack Power Transformers - FP120-50
$49.99
Quantity: 1
Claim Your Seller Account
Flat Pack Power Transformers - FP120-50
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The FP120-50 Flat Pack Power Transformer is a reliable and proven solution designed for electrical applications requiring a voltage rating of 120.0 V CT at 0.05 A. Constructed with UL recognized materials, this transformer ensures safety and quality performance. With dimensions of 1.875" x 1.562" x 0.875" and weighing 7.0 oz, it offers compact and efficient power conversion. Meeting RoHS compliance and tested for dielectric strength, this transformer is ideal for various industrial and institutional electrical systems.
Product Specifications
Specifications Agency File
UL: File E53148, UL 506, Class B General Purpose Transformer,cUL: File E53148, UL 506, Class B General Purpose Transformer, Canadian Use
Specifications Construction
Wound on two dual channel nylon bobbin. Materials are UL recognized, Class B (130º C) rated.

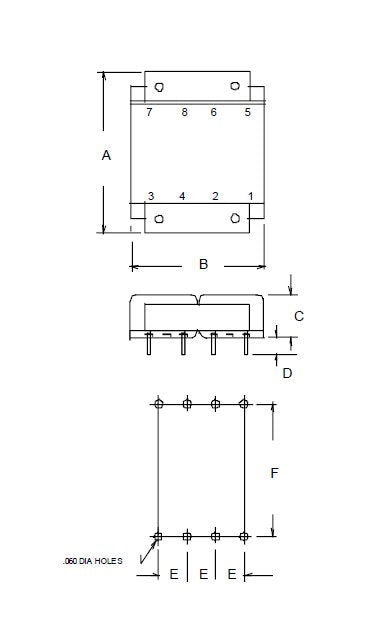

Specifications Dimension A
1.875 in
Specifications Dimension B
1.562 in
Specifications Dimension C
0.875 in
Specifications Dimension D
0.267 in
Specifications Dimension E
0.375 in
Specifications Dimension F
1.600 in
Specifications Dimension H
0.875 in
Specifications Dimension L
1.875 in
Specifications Dimension W
1.562 in
Specifications Electrical Rating
6.0 V·A
Specifications Mounting Length
1.62 in
Specifications Mounting Width
0.88 in
Specifications Pin Dimension
0.020 x 0.041 in
Specifications Primary Frequency
50 Hz | 60 Hz
Specifications Primary Voltage
115 V | 230 V
Specifications Rms Hi Pot Tested
2,000 V
Specifications Rohs Compliance
As of manufacturing date February 2016, all standard products meet the requirements of 2015/863/EU, known as the RoHS 3 initiative.
Specifications Safety
These products are 100% tested for dielectric strength at 2 KVAC, 60 Hz between primary and secondary windings and between the primary/secondary windings and the core.

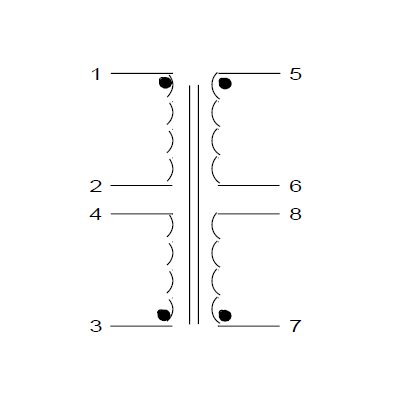

Specifications Transformer Contact Type
Center Tap
Specifications Voltage In Parallel
60.0 V at 0.1 A
Specifications Voltage In Series
120.0 V CT at 0.05 A
Specifications Weight
7.0 oz
Technical Notes 0
Hi-pot tested at 2,000 VRMS.Split bobbin with side-by-side windings to reduce capacitance and eliminate the need for a static shield.Mounting Holes: 2.5 VA & 6VA = 0.125"; 12 VA = 0.165"; 24 VA = 0.157"; 48 VA = 0.20"
