High-performance FP16-1500 Flat Pack Power Transformers designed for reliability and safety. RoHS compliant and tested for dielectric strength. Ideal for various voltage applications.
Regular price
$59.99
Regular price
Sale price
$59.99
Unit price
per
Initiate Order
Flat Pack Power Transformers - FP16-1500 Series
$59.99
Quantity: 1
Claim Your Seller Account
Flat Pack Power Transformers - FP16-1500 Series
$59.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Experience superior power transformation with the FP16-1500 Flat Pack Power Transformer series. Designed for reliability and longevity, these transformers are meticulously constructed with UL recognized materials. With an electrical rating of 24 VA and various voltage options, including 16.0 V CT at 1.5 A in series and 8.0 V at 3.0 A in parallel, these transformers offer versatile and efficient power solutions. RoHS compliant and tested for dielectric strength, these transformers ensure safety and quality in every application.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Specifications Agency File
UL: File E53148, UL 506, Class B General Purpose Transformer,cUL: File E53148, UL 506, Class B General Purpose Transformer, Canadian Use
Specifications Construction
Wound on two dual channel nylon bobbin. Materials are UL recognized, Class B (130º C) rated.

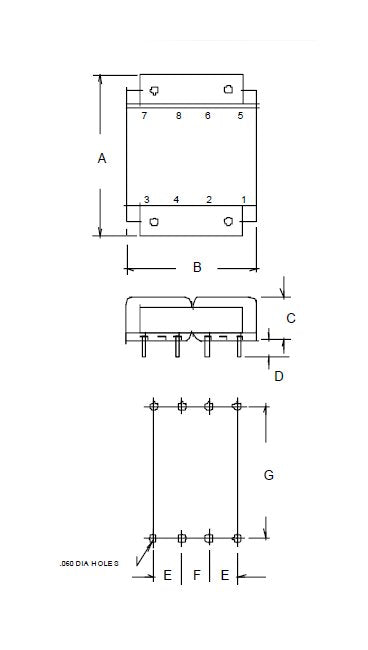

Specifications Dimension A
2.87 in
Specifications Dimension B
2.25 in
Specifications Dimension C
1.375 in
Specifications Dimension D
0.267 in
Specifications Dimension E
0.600 in
Specifications Dimension F
0.531 in
Specifications Dimension G
1.90 in
Specifications Dimension H
1.375 in
Specifications Dimension L
2.756 in
Specifications Dimension W
2.25 in
Specifications Electrical Rating
24 V·A
Specifications Mounting Length
2.44 in
Specifications Mounting Width
1.1 in
Specifications Pin Dimension
0.020 x 0.041 in
Specifications Primary Frequency
50 Hz | 60 Hz
Specifications Primary Voltage
115 V | 230 V
Specifications Rms Hi Pot Tested
2,000 V
Specifications Rohs Compliance
As of manufacturing date February 2016, all standard products meet the requirements of 2015/863/EU, known as the RoHS 3 initiative.
Specifications Safety
These products are 100% tested for dielectric strength at 2 KVAC, 60 Hz between primary and secondary windings and between the primary/secondary windings and the core.
Specifications Transformer Contact Type
Center Tap
Specifications Voltage In Parallel
8.0 V at 3.0 A
Specifications Voltage In Series
16.0 V CT at 1.5 A
Specifications Weight
15.0 oz
Technical Notes 0
Hi-pot tested at 2,000 VRMS.Split bobbin with side-by-side windings to reduce capacitance and eliminate the need for a static shield.Mounting Holes: 2.5 VA & 6VA = 0.125"; 12 VA = 0.165"; 24 VA = 0.157"; 48 VA = 0.20"
