The FP16-3000 Flat Pack Power Transformer is a reliable solution designed for a wide range of applications. This transformer features an electrical rating of 48 V·A, ensuring efficient power conversion. With primary voltages of 115 V or 230 V, and frequency compatibility with 50 Hz or 60 Hz systems, this transformer is versatile and adaptable. Constructed with UL recognized materials and meeting RoHS compliance, it guarantees safety and durability. The transformer undergoes rigorous testing for dielectric strength, making it a dependable choice for both consumer and institutional buyers.
Product Specifications
Specifications Agency File
UL: File E53148, UL 506, Class B General Purpose Transformer,cUL: File E53148, UL 506, Class B General Purpose Transformer, Canadian Use
Specifications Construction
Wound on two dual channel nylon bobbin. Materials are UL recognized, Class B (130º C) rated.

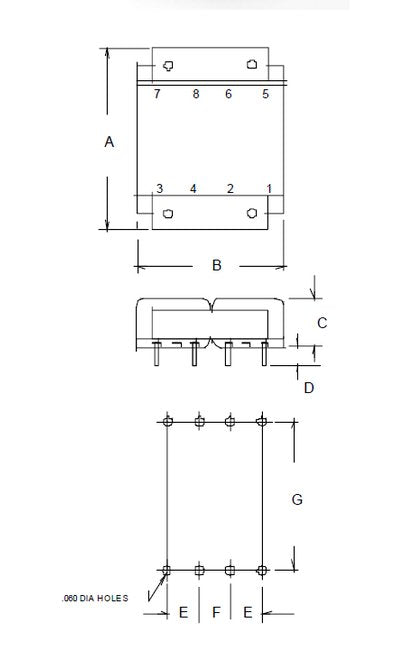

Specifications Dimension A
3.12 in
Specifications Dimension B
2.50 in
Specifications Dimension C
1.375 in
Specifications Dimension D
0.267 in
Specifications Dimension E
0.600 in
Specifications Dimension F
0.669 in
Specifications Dimension G
2.18 in
Specifications Dimension H
1.375 in
Specifications Dimension L
3.12 in
Specifications Dimension W
2.5 in
Specifications Electrical Rating
48 V·A
Specifications Mounting Length
2.52 in
Specifications Mounting Width
1.26 in
Specifications Pin Dimension
0.020 x 0.041 in
Specifications Primary Frequency
50 Hz | 60 Hz
Specifications Primary Voltage
115 V | 230 V
Specifications Rms Hi Pot Tested
2,000 V
Specifications Rohs Compliance
As of manufacturing date February 2016, all standard products meet the requirements of 2015/863/EU, known as the RoHS 3 initiative.
Specifications Safety
These products are 100% tested for dielectric strength at 2 KVAC, 60 Hz between primary and secondary windings and between the primary/secondary windings and the core.
Specifications Transformer Contact Type

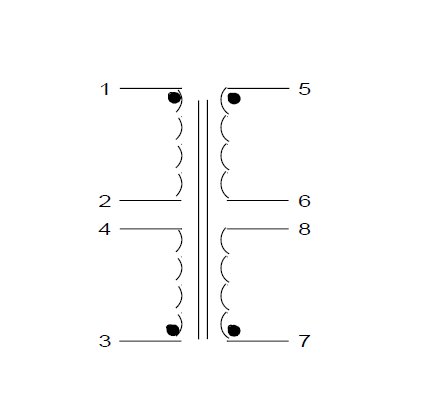

Center Tap
Specifications Voltage In Parallel
8.0 V at 6.0 A
Specifications Voltage In Series
16 V CT at 3.0 A
Specifications Weight
21.0 oz
Technical Notes 0
Hi-pot tested at 2,000 VRMS.Split bobbin with side-by-side windings to reduce capacitance and eliminate the need for a static shield.Mounting Holes: 2.5 VA & 6VA = 0.125"; 12 VA = 0.165"; 24 VA = 0.157"; 48 VA = 0.20"
