The Flat Pack Power Transformers FP16-750 offer a reliable power solution with a voltage rating of 16.0 V CT at 0.75 A, suitable for diverse applications. Constructed with UL recognized materials and designed for safety, these transformers undergo stringent testing for dielectric strength and comply with RoHS standards.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Specifications Agency File
UL: File E53148, UL 506, Class B General Purpose Transformer,cUL: File E53148, UL 506, Class B General Purpose Transformer, Canadian Use
Specifications Construction
Wound on two dual channel nylon bobbin. Materials are UL recognized, Class B (130º C) rated.

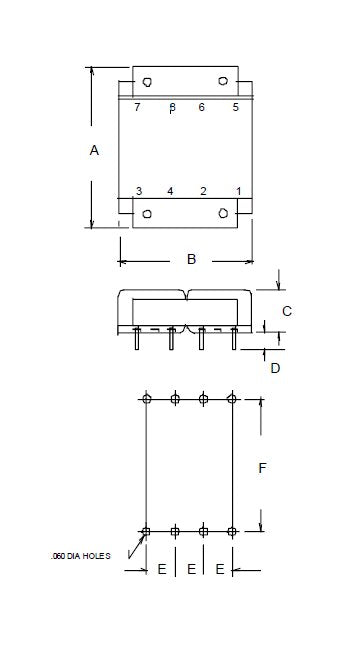

Specifications Dimension A
2.500 in
Specifications Dimension B
2.00 in
Specifications Dimension C
1.062 in
Specifications Dimension D
0.267 in
Specifications Dimension E
0.500 in
Specifications Dimension F
2.00 in
Specifications Dimension H
1.062 in
Specifications Dimension L
2.500 in
Specifications Dimension W
2.000 in
Specifications Electrical Rating
12.0 V·A
Specifications Mounting Length
2.0 in
Specifications Mounting Width
1.0 in
Specifications Pin Dimension
0.020 x 0.041 in
Specifications Primary Frequency
50 Hz | 60 Hz
Specifications Primary Voltage
115 V | 230 V
Specifications Rms Hi Pot Tested
2,000 V
Specifications Rohs Compliance
As of manufacturing date February 2016, all standard products meet the requirements of 2015/863/EU, known as the RoHS 3 initiative.
Specifications Safety
These products are 100% tested for dielectric strength at 2 KVAC, 60 Hz between primary and secondary windings and between the primary/secondary windings and the core.
Specifications Transformer Contact Type
Center Tap
Specifications Voltage In Parallel
8.0 V at 1.5 A
Specifications Voltage In Series
16.0 V CT at 0.75 A
Specifications Weight
11.0 oz
Technical Notes 0
Hi-pot tested at 2,000 VRMS.Split bobbin with side-by-side windings to reduce capacitance and eliminate the need for a static shield.Mounting Holes: 2.5 VA & 6VA = 0.125"; 12 VA = 0.165"; 24 VA = 0.157"; 48 VA = 0.20"
