The Flat Pack Power Transformers FP20-2400 series is a trusted choice with a proven design for reliable service. Constructed with UL recognized materials, it offers an electrical rating of 48 V·A, featuring a Center Tap transformer contact type. With dimensions of 3.12 x 2.50 x 1.375 inches and weighing 21.0 oz, these transformers are suitable for various applications. They are RoHS compliant and meet stringent safety standards, ensuring 100% dielectric strength and compliance with industry regulations.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Specifications Agency File
UL: File E53148, UL 506, Class B General Purpose Transformer,cUL: File E53148, UL 506, Class B General Purpose Transformer, Canadian Use
Specifications Construction
Wound on two dual channel nylon bobbin. Materials are UL recognized, Class B (130º C) rated.

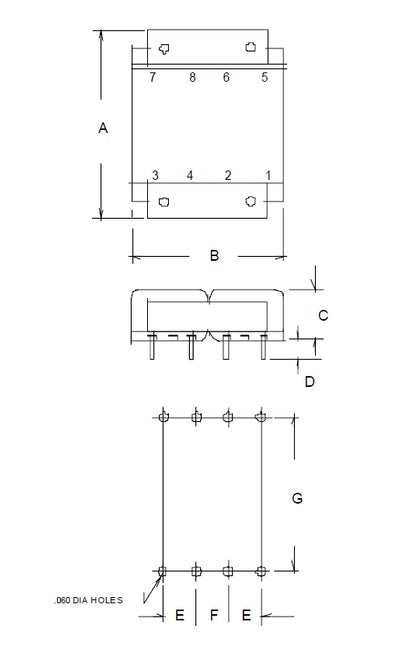

Specifications Dimension A
3.12 in
Specifications Dimension B
2.50 in
Specifications Dimension C
1.375 in
Specifications Dimension D
0.267 in
Specifications Dimension E
0.600 in
Specifications Dimension F
0.669 in
Specifications Dimension G
2.18 in
Specifications Dimension H
1.375 in
Specifications Dimension L
3.12 in
Specifications Dimension W
2.5 in
Specifications Electrical Rating
48 V·A
Specifications Mounting Length
2.52 in
Specifications Mounting Width
1.26 in
Specifications Pin Dimension
0.020 x 0.041 in
Specifications Primary Frequency
50 Hz | 60 Hz
Specifications Primary Voltage
115 V | 230 V
Specifications Rms Hi Pot Tested
2,000 V
Specifications Rohs Compliance
As of manufacturing date February 2016, all standard products meet the requirements of 2015/863/EU, known as the RoHS 3 initiative.
Specifications Safety
These products are 100% tested for dielectric strength at 2 KVAC, 60 Hz between primary and secondary windings and between the primary/secondary windings and the core.

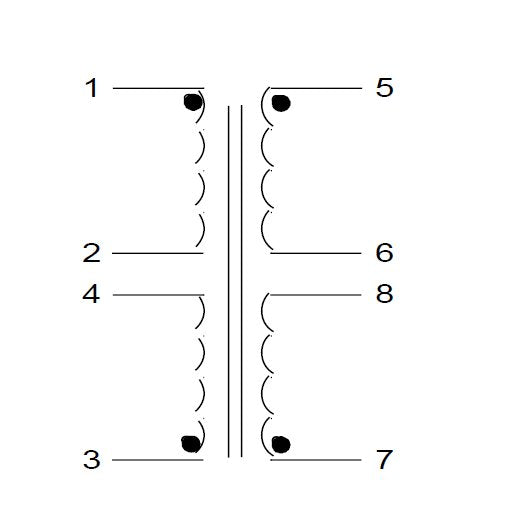

Specifications Transformer Contact Type
Center Tap
Specifications Voltage In Parallel
10.0 V at 4.8 A
Specifications Voltage In Series
20.0 V CT at 2.4 A
Specifications Weight
21.0 oz
Technical Notes 0
Hi-pot tested at 2,000 VRMS.Split bobbin with side-by-side windings to reduce capacitance and eliminate the need for a static shield.Mounting Holes: 2.5 VA & 6VA = 0.125"; 12 VA = 0.165"; 24 VA = 0.157"; 48 VA = 0.20"
