Flat Pack Power Transformers - FP20-600, 12.0 V·A

Flat Pack Power Transformers - FP20-600, 12.0 V·A

POW-efe7d1

Reliable FP20-600 Flat Pack Power Transformer with UL materials, multiple voltage options, and compact design for varied applications.

$59.99
$59.99
Sale

Initiate Order

Flat Pack Power Transformers - FP20-600, 12.0 V·A

Flat Pack Power Transformers - FP20-600, 12.0 V·A

$59.99

Quantity: 1

Claim Your Seller Account

Flat Pack Power Transformers - FP20-600, 12.0 V·A

Flat Pack Power Transformers - FP20-600, 12.0 V·A

$59.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details
The FP20-600 Flat Pack Power Transformer exemplifies reliable performance with UL recognized materials. It features dual channel nylon bobbin construction, ensuring safety with 100% dielectric strength testing at 2 KVAC. With dimensions of 2.5'' x 2.0'' x 1.062'' and various voltage options including 20.0 V CT at 0.6 A, this transformer is ideal for diverse applications. RoHS compliant and tested to meet industry-specific standards, this transformer is a top choice for both consumer and institutional needs.

Ready to Grow Without Cash Flow Constraints?

Get Net 30, 60, or 90 day terms at 0% interest on any purchase

Check Your Eligibility Now
Ready to Grow Without Cash Flow Constraints?

Product Specifications

Specifications Agency File
UL: File E53148, UL 506, Class B General Purpose Transformer,cUL: File E53148, UL 506, Class B General Purpose Transformer, Canadian Use
Specifications Construction
Wound on two dual channel nylon bobbin. Materials are UL recognized, Class B (130º C) rated.

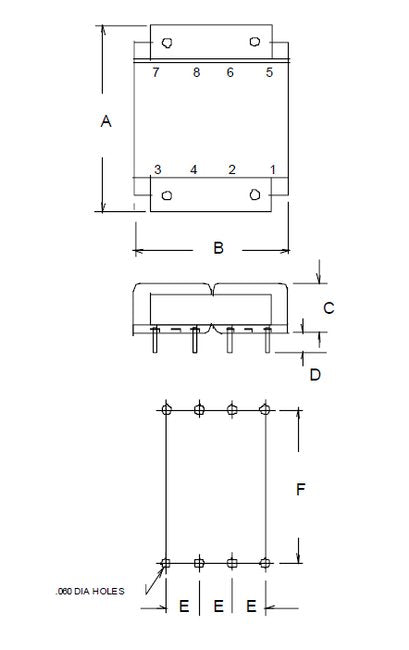

Specifications Dimension A
2.500 in
Specifications Dimension B
2.00 in
Specifications Dimension C
1.062 in
Specifications Dimension D
0.267 in
Specifications Dimension E
0.500 in
Specifications Dimension F
2.00 in
Specifications Dimension H
1.062 in
Specifications Dimension L
2.500 in
Specifications Dimension W
2.000 in
Specifications Electrical Rating
12.0 V·A
Specifications Mounting Length
2.0 in
Specifications Mounting Width
1.0 in
Specifications Pin Dimension
0.020 x 0.041 in
Specifications Primary Frequency
50 Hz | 60 Hz
Specifications Primary Voltage
115 V | 230 V
Specifications Rms Hi Pot Tested
2,000 V
Specifications Rohs Compliance
As of manufacturing date February 2016, all standard products meet the requirements of 2015/863/EU, known as the RoHS 3 initiative.
Specifications Safety
These products are 100% tested for dielectric strength at 2 KVAC, 60 Hz between primary and secondary windings and between the primary/secondary windings and the core.
Specifications Transformer Contact Type
Center Tap
Specifications Voltage In Parallel
10.0 V at 1.2 A
Specifications Voltage In Series
20.0 V CT at 0.6 A
Specifications Weight
11.0 oz
Technical Notes 0
Hi-pot tested at 2,000 VRMS.Split bobbin with side-by-side windings to reduce capacitance and eliminate the need for a static shield.Mounting Holes: 2.5 VA & 6VA = 0.125"; 12 VA = 0.165"; 24 VA = 0.157"; 48 VA = 0.20"
