The FP30-1600 flat pack power transformer offers a history of reliability and proven design. With UL recognized materials, this transformer features electrical ratings of 48 V·A, center tap transformer contact type, and safety tested for dielectric strength. Constructed with Class B materials, RoHS compliant, and Hi-pot tested at 2,000 VRMS, it ensures high performance and safety for various applications.
Product Specifications
Specifications Agency File
UL: File E53148, UL 506, Class B General Purpose Transformer,cUL: File E53148, UL 506, Class B General Purpose Transformer, Canadian Use
Specifications Construction
Wound on two dual channel nylon bobbin. Materials are UL recognized, Class B (130º C) rated.

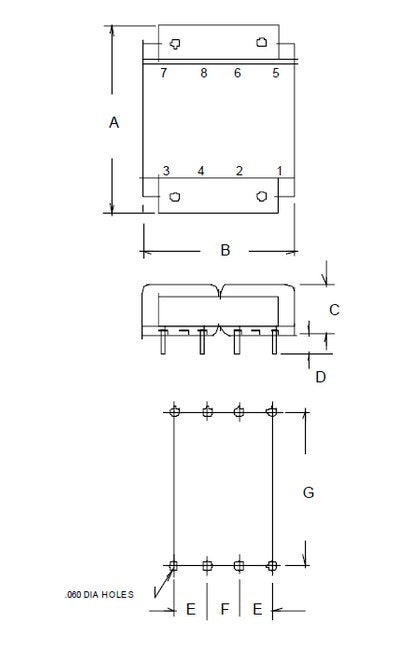

Specifications Dimension A
3.12 in
Specifications Dimension B
2.50 in
Specifications Dimension C
1.375 in
Specifications Dimension D
0.267 in
Specifications Dimension E
0.600 in
Specifications Dimension F
0.669 in
Specifications Dimension G
2.18 in
Specifications Dimension H
1.375 in
Specifications Dimension L
3.12 in
Specifications Dimension W
2.5 in
Specifications Electrical Rating
48 V·A
Specifications Mounting Length
2.52 in
Specifications Mounting Width
1.26 in
Specifications Pin Dimension
0.020 x 0.041 in
Specifications Primary Frequency
50 Hz | 60 Hz
Specifications Primary Voltage
115 V | 230 V
Specifications Rms Hi Pot Tested
2,000 V
Specifications Rohs Compliance
As of manufacturing date February 2016, all standard products meet the requirements of 2015/863/EU, known as the RoHS 3 initiative.
Specifications Safety
These products are 100% tested for dielectric strength at 2 KVAC, 60 Hz between primary and secondary windings and between the primary/secondary windings and the core.

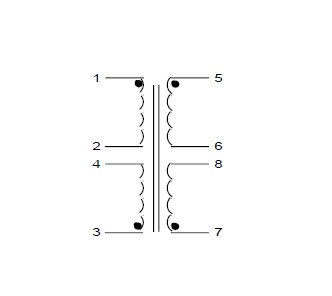

Specifications Transformer Contact Type
Center Tap
Specifications Voltage In Parallel
15.0 V at 3.2 A
Specifications Voltage In Series
30.0 V CT at 1.6 A
Specifications Weight
21.0 oz
Technical Notes 0
Hi-pot tested at 2,000 VRMS.Split bobbin with side-by-side windings to reduce capacitance and eliminate the need for a static shield.Mounting Holes: 2.5 VA & 6VA = 0.125"; 12 VA = 0.165"; 24 VA = 0.157"; 48 VA = 0.20"
