Flat Pack Power Transformers - FP40-150
Flat Pack Power Transformers - FP40-150
SKU:POW-3a26e7
Reliable Flat Pack Power Transformers - FP40-150, 6.0 VA, UL Recognized Materials, Safety Tested, RoHS Compliant.
Regular price
$59.99
Regular price
Sale price
$59.99
Unit price
per
Initiate Order
Flat Pack Power Transformers - FP40-150
$59.99
Quantity: 1
Claim Your Seller Account
Flat Pack Power Transformers - FP40-150
$59.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Flat Pack Power Transformers - FP40-150 is a reliable and durable power transformer designed for a wide range of applications. With an electrical rating of 6.0 VA, this transformer offers Voltage in Series 40.0 V CT at 0.15 A and Voltage in Parallel 20.0 V at 0.3 A. Constructed with UL recognized materials and meeting the Class B (130°C) rating, it ensures safety and performance. Hi-pot tested at 2,000 V RMS, this transformer complies with RoHS regulations and is ideal for institutional and government procurement needs.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Specifications Agency File
UL: File E53148, UL 506, Class B General Purpose Transformer,cUL: File E53148, UL 506, Class B General Purpose Transformer, Canadian Use
Specifications Construction

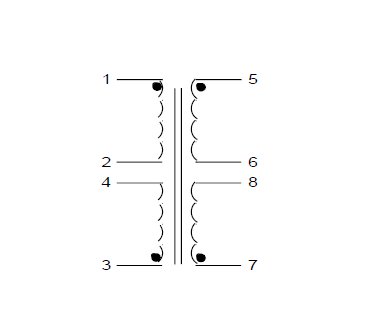

Wound on two dual channel nylon bobbin. Materials are UL recognized, Class B (130º C) rated.

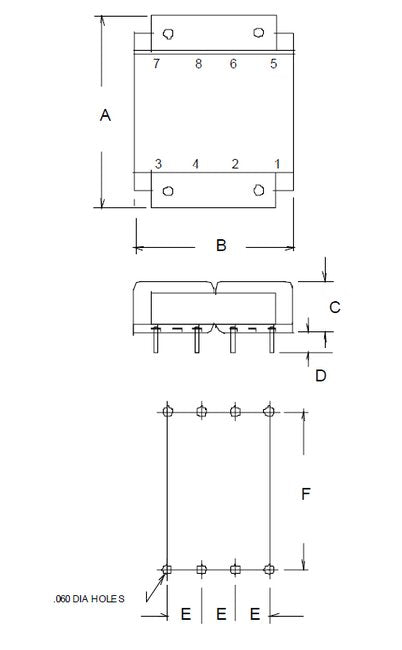

Specifications Dimension A
1.875 in
Specifications Dimension B
1.562 in
Specifications Dimension C
0.875 in
Specifications Dimension D
0.267 in
Specifications Dimension E
0.375 in
Specifications Dimension F
1.600 in
Specifications Dimension H
0.875 in
Specifications Dimension L
1.875 in
Specifications Dimension W
1.562 in
Specifications Electrical Rating
6.0 V·A
Specifications Mounting Length
1.62 in
Specifications Mounting Width
0.88 in
Specifications Pin Dimension
0.020 x 0.041 in
Specifications Primary Frequency
50 Hz | 60 Hz
Specifications Primary Voltage
115 V | 230 V
Specifications Rms Hi Pot Tested
2,000 V
Specifications Rohs Compliance
As of manufacturing date February 2016, all standard products meet the requirements of 2015/863/EU, known as the RoHS 3 initiative.
Specifications Safety
These products are 100% tested for dielectric strength at 2 KVAC, 60 Hz between primary and secondary windings and between the primary/secondary windings and the core.
Specifications Transformer Contact Type
Center Tap
Specifications Voltage In Parallel
20.0 V at 0.3 A
Specifications Voltage In Series
40.0 V CT at 0.15 A
Specifications Weight
7.0 oz
Technical Notes 0
Hi-pot tested at 2,000 VRMS.Split bobbin with side-by-side windings to reduce capacitance and eliminate the need for a static shield.Mounting Holes: 2.5 VA & 6VA = 0.125"; 12 VA = 0.165"; 24 VA = 0.157"; 48 VA = 0.20"
