Flat Pack Power Transformers FP56-200
Flat Pack Power Transformers FP56-200
SKU:POW-be15c4
Efficient and reliable Flat Pack Power Transformer with UL recognized materials, versatile voltage options, and superior safety standards.
Regular price
$34.99
Regular price
Sale price
$34.99
Unit price
per
Initiate Order
Flat Pack Power Transformers FP56-200
$34.99
Quantity: 1
Claim Your Seller Account
Flat Pack Power Transformers FP56-200
$34.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Flat Pack Power Transformers FP56-200 is a reliable and efficient solution designed for a range of electrical applications. With an electrical rating of 12.0 V·A and various voltage options, including 56.0 V CT at 0.2 A and 28.0 V at 0.4 A, this transformer offers versatility and performance. Constructed with UL recognized materials and meeting stringent safety standards, including dielectric strength testing and RoHS compliance, this transformer ensures durability and reliability in use. The split bobbin design reduces capacitance and eliminates the need for a static shield, providing a space-saving and efficient solution for power distribution.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Specifications Agency File
UL: File E53148, UL 506, Class B General Purpose Transformer,cUL: File E53148, UL 506, Class B General Purpose Transformer, Canadian Use
Specifications Construction
Wound on two dual channel nylon bobbin. Materials are UL recognized, Class B (130º C) rated.

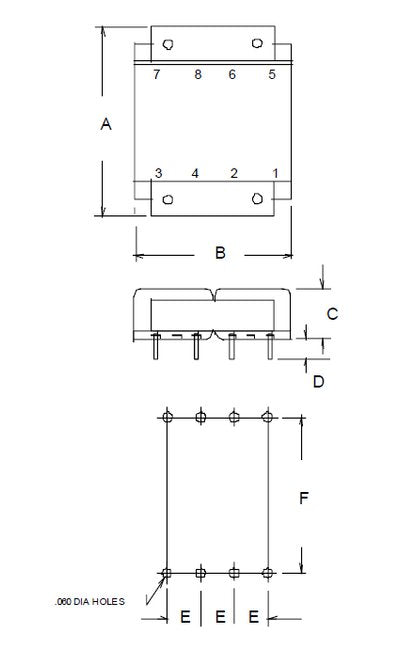

Specifications Dimension A
2.500 in
Specifications Dimension B
2.00 in
Specifications Dimension C
1.062 in
Specifications Dimension D
0.267 in
Specifications Dimension E
0.500 in
Specifications Dimension F
2.00 in
Specifications Dimension H
1.062 in
Specifications Dimension L
2.500 in
Specifications Dimension W
2.000 in
Specifications Electrical Rating
12.0 V·A
Specifications Mounting Length
2.0 in
Specifications Mounting Width
1.0 in
Specifications Pin Dimension
0.020 x 0.041 in
Specifications Primary Frequency
50 Hz | 60 Hz
Specifications Primary Voltage
115 V | 230 V
Specifications Rms Hi Pot Tested
2,000 V
Specifications Rohs Compliance
As of manufacturing date February 2016, all standard products meet the requirements of 2015/863/EU, known as the RoHS 3 initiative.
Specifications Safety
These products are 100% tested for dielectric strength at 2 KVAC, 60 Hz between primary and secondary windings and between the primary/secondary windings and the core.
Specifications Transformer Contact Type
Center Tap
Specifications Voltage In Parallel
28.0 V at 0.4 A
Specifications Voltage In Series
56.0 V CT at 0.2 A
Specifications Weight
11.0 oz
Technical Notes 0
Hi-pot tested at 2,000 VRMS.Split bobbin with side-by-side windings to reduce capacitance and eliminate the need for a static shield.Mounting Holes: 2.5 VA & 6VA = 0.125"; 12 VA = 0.165"; 24 VA = 0.157"; 48 VA = 0.20"
