Flat Pack Power Transformers - Model FP88-130
Flat Pack Power Transformers - Model FP88-130
SKU:POW-fcab49
Reliable power transformer with UL materials, center tap contact, and dual primary voltages. Ensures safety and durability for various applications.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
Flat Pack Power Transformers - Model FP88-130
$49.99
Quantity: 1
Claim Your Seller Account
Flat Pack Power Transformers - Model FP88-130
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

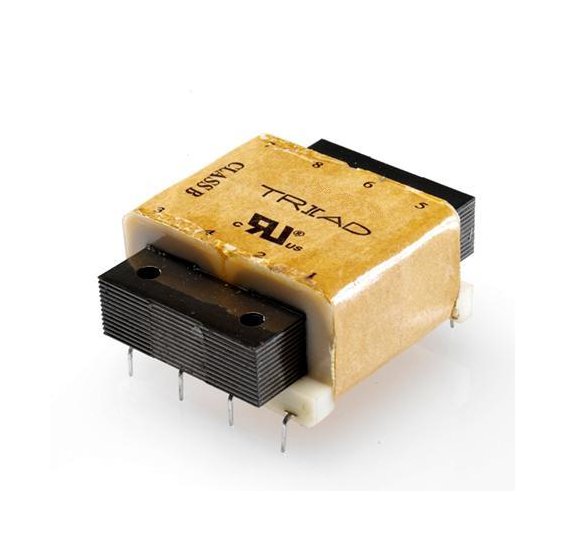

Meet your power supply needs with the FP88-130 from our PC Mount Flat Pack™ series. Designed for reliability and performance, this transformer features UL recognized materials, a center tap contact type, and primary voltages compatible with 115V/230V systems. With Class B construction and 100% dielectric strength testing, it ensures safety and durability. Additionally, RoHS compliant and tested to meet high industry standards, this transformer is ideal for a wide range of applications requiring efficient power conversion.
Product Specifications
Specifications Agency File
UL: File E53148, UL 506, Class B General Purpose Transformer,cUL: File E53148, UL 506, Class B General Purpose Transformer, Canadian Use
Specifications Construction
Wound on two dual channel nylon bobbin. Materials are UL recognized, Class B (130º C) rated.

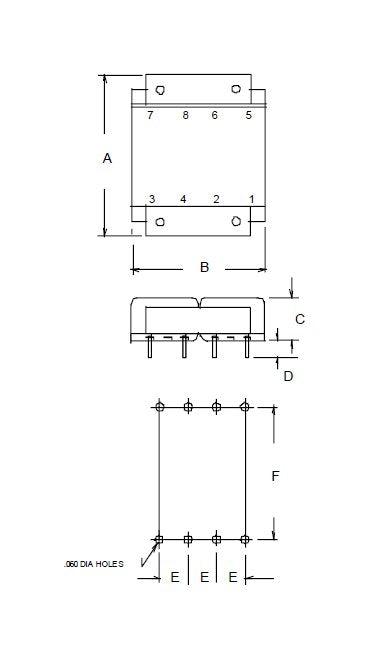

Specifications Dimension A
2.500 in
Specifications Dimension B
2.00 in
Specifications Dimension C
1.062 in
Specifications Dimension D
0.267 in
Specifications Dimension E
0.500 in
Specifications Dimension F
2.00 in
Specifications Dimension H
1.062 in
Specifications Dimension L
2.500 in
Specifications Dimension W
2.000 in
Specifications Electrical Rating
12.0 V·A
Specifications Mounting Length
2.0 in
Specifications Mounting Width
1.0 in
Specifications Pin Dimension
0.020 x 0.041 in
Specifications Primary Frequency
50 Hz | 60 Hz
Specifications Primary Voltage
115 V | 230 V
Specifications Rms Hi Pot Tested
2,000 V
Specifications Rohs Compliance
As of manufacturing date February 2016, all standard products meet the requirements of 2015/863/EU, known as the RoHS 3 initiative.
Specifications Safety
These products are 100% tested for dielectric strength at 2 KVAC, 60 Hz between primary and secondary windings and between the primary/secondary windings and the core.

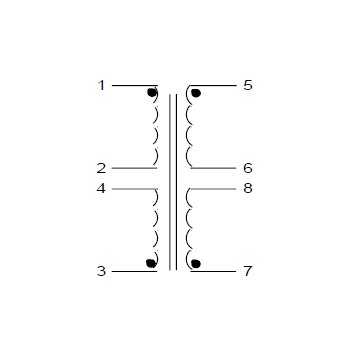

Specifications Transformer Contact Type
Center Tap
Specifications Voltage In Parallel
44.0 V at 0.26 A
Specifications Voltage In Series
88.0 V CT at 0.13 A
Specifications Weight
11.0 oz
Technical Notes 0
Hi-pot tested at 2,000 VRMS.Split bobbin with side-by-side windings to reduce capacitance and eliminate the need for a static shield.Mounting Holes: 2.5 VA & 6VA = 0.125"; 12 VA = 0.165"; 24 VA = 0.157"; 48 VA = 0.20"
