Flat Pack™ Power Transformers - FP10-600

Flat Pack™ Power Transformers - FP10-600

POW-1509ce

Flat Pack™ Power Transformers - FP10-600: Reliable, UL recognized, 6.0 V·A rating, Hi-Pot tested at 2,000 V RMS. Meets RoHS compliance.

$59.99
$59.99
Sale

Initiate Order

Flat Pack™ Power Transformers - FP10-600

Flat Pack™ Power Transformers - FP10-600

$59.99

Quantity: 1

Claim Your Seller Account

Flat Pack™ Power Transformers - FP10-600

Flat Pack™ Power Transformers - FP10-600

$59.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details
The Flat Pack™ Power Transformers FP10-600 series offers exceptional reliability and performance in the field. Constructed with UL recognized materials and a proven design, these transformers deliver an electrical rating of 6.0 V·A. With primary voltage options of 115 V or 230 V and Hi-Pot tested at 2,000 V RMS, they ensure robust safety standards. Designed with center tap transformer contact type and dimensions tailored for seamless integration, these transformers meet stringent quality benchmarks. RoHS compliant and crafted for industrial endurance, they are ideal for diverse applications necessitating efficiency and durability.

Product Specifications

Specifications Agency File
UL: File E53148, UL 506, Class B General Purpose Transformer,cUL: File E53148, UL 506, Class B General Purpose Transformer, Canadian Use
Specifications Construction
Wound on two dual channel nylon bobbin. Materials are UL recognized, Class B (130º C) rated.

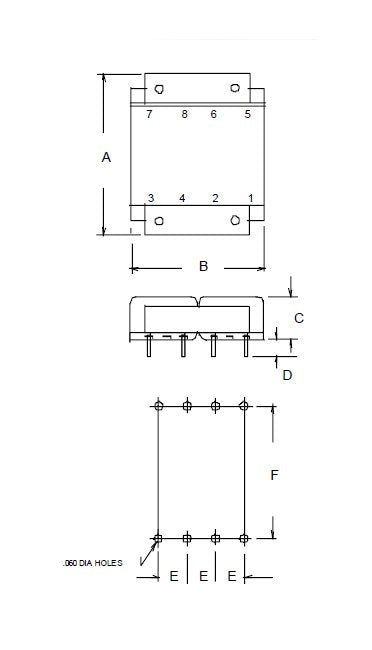

Specifications Dimension A
1.875 in
Specifications Dimension B
1.562 in
Specifications Dimension C
0.875 in
Specifications Dimension D
0.267 in
Specifications Dimension E
0.375 in
Specifications Dimension F
1.600 in
Specifications Dimension H
0.875 in
Specifications Dimension L
1.875 in
Specifications Dimension W
1.562 in
Specifications Electrical Rating
6.0 V·A
Specifications Mounting Length
1.62 in
Specifications Mounting Width
0.88 in
Specifications Pin Dimension
0.020 x 0.041 in
Specifications Primary Frequency
50 Hz | 60 Hz
Specifications Primary Voltage
115 V | 230 V
Specifications Rms Hi Pot Tested
2,000 V
Specifications Rohs Compliance
As of manufacturing date February 2016, all standard products meet the requirements of 2015/863/EU, known as the RoHS 3 initiative.
Specifications Safety
These products are 100% tested for dielectric strength at 2 KVAC, 60 Hz between primary and secondary windings and between the primary/secondary windings and the core.

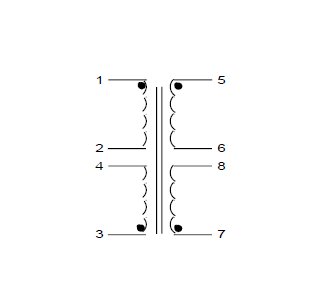

Specifications Transformer Contact Type
Center Tap
Specifications Voltage In Parallel
5.0 V at 1.2 A
Specifications Voltage In Series
10.0 V CT at 0.6 A
Specifications Weight
7.0 oz
Technical Notes 0
Hi-pot tested at 2,000 VRMS.Split bobbin with side-by-side windings to reduce capacitance and eliminate the need for a static shield.Mounting Holes: 2.5 VA & 6VA = 0.125"; 12 VA = 0.165"; 24 VA = 0.157"; 48 VA = 0.20"
