FlatPack Power Transformers - FP30-85 Series
FlatPack Power Transformers - FP30-85 Series
SKU:POW-0a51cf
Reliable FlatPack Power Transformers with UL recognized materials, optimal efficiency, and high safety standards. Ideal for various power conversion applications.
Regular price
$59.99
Regular price
Sale price
$59.99
Unit price
per
Initiate Order
FlatPack Power Transformers - FP30-85 Series
$59.99
Quantity: 1
Claim Your Seller Account
FlatPack Power Transformers - FP30-85 Series
$59.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The FlatPack Power Transformers from the FP30-85 series are renowned for their reliability and long history of service in various applications. With an electrical rating of 2.5 VA and voltage options of 30.0 V CT at 0.08 A in series and 15.0 V at 0.16 A in parallel, these transformers offer versatile performance. Constructed with UL recognized materials and meeting stringent safety standards like 2 KVAC dielectric strength testing, they ensure secure operation. Additionally, RoHS compliant and designed for efficiency with wound dual channel nylon bobbins, these transformers are ideal for applications requiring dependable power conversion.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Specifications Agency File
UL: File E53148, UL 506, Class B General Purpose Transformer,cUL: File E53148, UL 506, Class B General Purpose Transformer, Canadian Use
Specifications Construction
Wound on two dual channel nylon bobbin. Materials are UL recognized, Class B (130º C) rated.

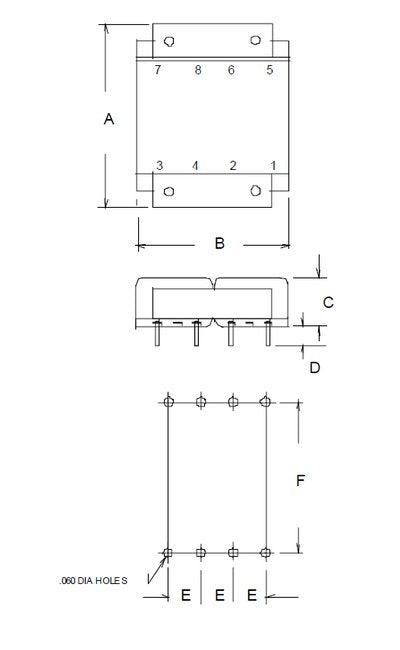

Specifications Dimension A
1.875 in
Specifications Dimension B
1.562 in
Specifications Dimension C
0.650 in
Specifications Dimension D
0.267 in
Specifications Dimension E
0.375 in
Specifications Dimension F
1.600 in
Specifications Dimension H
0.650 in
Specifications Dimension L
1.875 in
Specifications Dimension W
1.562 in
Specifications Electrical Rating
2.5 V·A
Specifications Mounting Length
1.62 in
Specifications Mounting Width
0.88 in
Specifications Pin Dimension
0.020 x 0.041 in
Specifications Primary Frequency
50 Hz | 60 Hz
Specifications Primary Voltage
115 V | 230 V
Specifications Rms Hi Pot Tested
2,000 V
Specifications Rohs Compliance
As of manufacturing date February 2016, all standard products meet the requirements of 2015/863/EU, known as the RoHS 3 initiative.
Specifications Safety
These products are 100% tested for dielectric strength at 2 KVAC, 60 Hz between primary and secondary windings and between the primary/secondary windings and the core.
Specifications Transformer Contact Type
Center Tap
Specifications Voltage In Parallel
15.0 V at 0.16 A
Specifications Voltage In Series
30.0 V CT at 0.08 A
Specifications Weight
5.0 oz
Technical Notes 0
Hi-pot tested at 2,000 VRMS.Split bobbin with side-by-side windings to reduce capacitance and eliminate the need for a static shield.Mounting Holes: 2.5 VA & 6VA = 0.125"; 12 VA = 0.165"; 24 VA = 0.157"; 48 VA = 0.20"
