Flex Riser Fluoropolymer Heaters
Flex Riser Fluoropolymer Heaters
SKU:HEA-a08d46
Powerful 4000W Flex Riser Fluoropolymer Heaters with customizable options for precise temperature control. cUL US Listed for safety.
Regular price
$599.99
Regular price
Sale price
$599.99
Unit price
per
Initiate Order
Flex Riser Fluoropolymer Heaters
$599.99
Quantity: 1
Claim Your Seller Account
Flex Riser Fluoropolymer Heaters
$599.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

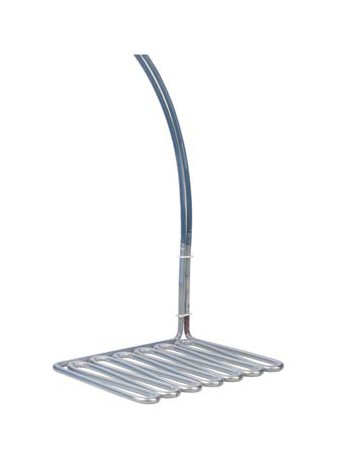

The HXRL Series Flex Riser Fluoropolymer Heaters are a pinnacle of efficient heating technology suitable for diverse applications. Offering 4000W power at 480V, these heaters ensure precise temperature management. With a choice of flex or rigid riser lengths and thermal protectors up to 250°F, they provide customizable heating solutions to fit specific requirements. Certified to cUL US standards, these heaters feature standard PTFE guards for enhanced safety and durability. Explore various configurations to find the perfect fit for your heating needs.
Product Specifications
Specifications Certifications
cUL US Listed
Specifications Guards Recommended
Fluoropolymer (PTFE) guards standard.
Specifications Guard Model Number
HXRL12-25G
Specifications Length
25 " | 635 mm
Specifications Options Available
Comes Standard with Resettable Fuse (Type-J TC) thermal protector (flex riser): P3: for solutions up to 250°F (121°C). | Replaceable Fuse (Type-J TC) thermal protector (rigid riser): P1: for solutions up to 180°F (82°C). | Replaceable Fuse (Type-J TC) thermal protector (rigid riser): P4: for solutions up to 230°F (110°C). | Resettable Fuse (Type-J TC) thermal protector (rigid riser): P2: for solutions up to 190°F. | Resettable Fuse (Type-J TC) thermal protector (rigid riser): P3: for solutions up to 210°F to 250°F. | Resettable Fuse (Type-J TC) thermal protector (rigid riser): P8: for solutions up to 190°F to 210°F.
Specifications Phase
Single
Specifications Riser Option
FR = flex riser length, specify length in inches | R = rigid riser length, specify length in inches
Specifications Riser Position
L=Left Front Corner | R=Right Front Corner
Specifications Volts
480 V
Specifications Watts
4000 W
Specifications Weight
14.0 lbs | 6.4 kg
Specifications Width
12 " | 305 mm
