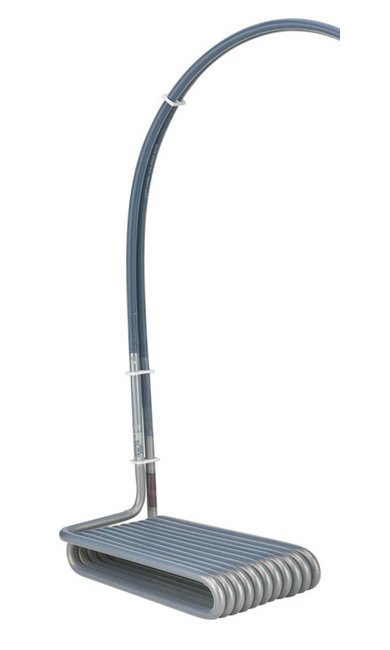

Flex Riser Fluoropolymer (PTFE) Immersion Heater - Single Phase 5000W, 480V
Flex Riser Fluoropolymer (PTFE) Immersion Heater - Single Phase 5000W, 480V
SKU:HEA-68b12e
Efficient HXOL Series 5000W Fluoropolymer (PTFE) Immersion Heater - Single Phase, 480V. Customizable riser positions.
Regular price
$399.99
Regular price
Sale price
$399.99
Unit price
per
Initiate Order
Flex Riser Fluoropolymer (PTFE) Immersion Heater - Single Phase 5000W, 480V
$399.99
Quantity: 1
Claim Your Seller Account
Flex Riser Fluoropolymer (PTFE) Immersion Heater - Single Phase 5000W, 480V
$399.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The HXOL Series Flex Riser Fluoropolymer (PTFE) Immersion Heater is designed for efficiency and safety. Featuring 5000W power, 480V input, and a single-phase configuration, this heater comes with a standard fluoropolymer (PTFE) guard for enhanced protection. The riser position can be customized to left or right, with options for flex or rigid riser lengths. It includes a resettable fuse thermal protector for temperature ranges up to 250°F, ensuring reliable performance in various solutions. Consult factory for other dimensional configurations.
Product Specifications
Specifications Guards Recommended
Fluoropolymer (PTFE) guards standard.
Specifications Guard Model Number
HXOL08-13G
Specifications Length
13 " | 330 mm
Specifications Options Available
Comes Standard with Resettable Fuse (Type-J TC) thermal protector (flex riser): P3: for solutions up to 250°F (121°C). | Replaceable Fuse (Type-J TC) thermal protector (rigid riser): P1: for solutions up to 180°F (82°C). | Replaceable Fuse (Type-J TC) thermal protector (rigid riser): P4: for solutions up to 230°F (110°C). | Resettable Fuse (Type-J TC) thermal protector (rigid riser): P2: for solutions up to 190°F. | Resettable Fuse (Type-J TC) thermal protector (rigid riser): P3: for solutions up to 210°F to 250°F. | Resettable Fuse (Type-J TC) thermal protector (rigid riser): P8: for solutions up to 190°F to 210°F.
Specifications Phase
Single
Specifications Riser Option
FR = flex riser length, specify length in inches | R = rigid riser length, specify length in inches
Specifications Riser Position
L=Left Front Corner | R=Right Front Corner
Specifications Volts
480 V
Specifications Watts
5000 W
Specifications Weight
17.0 lbs | 7.7 kg
Specifications Width
8 " | 203 mm
