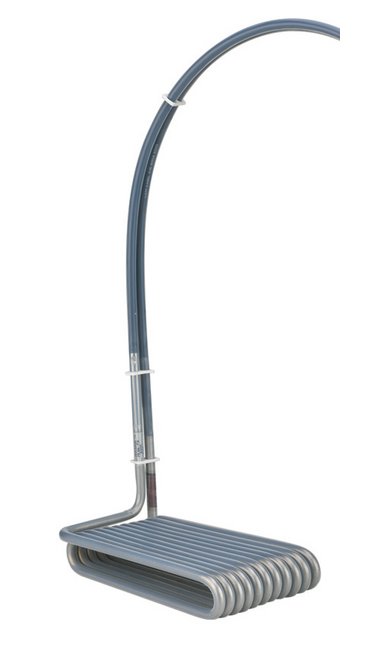

The HXOL Series Flex Riser Fluoropolymer (PTFE) Heaters are designed for efficiency and safety in single-phase applications. Equipped with thermal overload protection and standard PTFE guards, these heaters offer customizable riser positions and various options for different temperature solutions. With a robust build and precise dimensions, these heaters ensure reliable performance for a range of industrial processes.
Product Specifications
Specifications Guards Recommended
Fluoropolymer (PTFE) guards standard.
Specifications Guard Model Number
HXOL06-18G
Specifications Length
18 " | 457 mm
Specifications Options Available
Comes Standard with Resettable Fuse (Type-J TC) thermal protector (flex riser): P3: for solutions up to 250°F (121°C). | Replaceable Fuse (Type-J TC) thermal protector (rigid riser): P1: for solutions up to 180°F (82°C). | Replaceable Fuse (Type-J TC) thermal protector (rigid riser): P4: for solutions up to 230°F (110°C). | Resettable Fuse (Type-J TC) thermal protector (rigid riser): P2: for solutions up to 190°F. | Resettable Fuse (Type-J TC) thermal protector (rigid riser): P3: for solutions up to 210°F to 250°F. | Resettable Fuse (Type-J TC) thermal protector (rigid riser): P8: for solutions up to 190°F to 210°F.
Specifications Phase
Single
Specifications Riser Option
FR = flex riser length, specify length in inches | R = rigid riser length, specify length in inches
Specifications Riser Position
L=Left Front Corner | R=Right Front Corner
Specifications Volts
240 V
Specifications Watts
5000 W
Specifications Weight
17.0 lbs | 7.7 kg
Specifications Width
6 " | 152 mm
