Flexible Metal Conduit Type DSL7 - All Purpose, Extra Flexible, Uncovered
Flexible Metal Conduit Type DSL7 - All Purpose, Extra Flexible, Uncovered
SKU:FLE-ce88f4
Flexible Metal Conduit Type DSL7 - Extra Flexible, Uncovered, Ideal for Light-Duty Electrical Applications
Regular price
$239.99
Regular price
Sale price
$239.99
Unit price
per
Initiate Order
Flexible Metal Conduit Type DSL7 - All Purpose, Extra Flexible, Uncovered
$239.99
Quantity: 1
Claim Your Seller Account
Flexible Metal Conduit Type DSL7 - All Purpose, Extra Flexible, Uncovered
$239.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

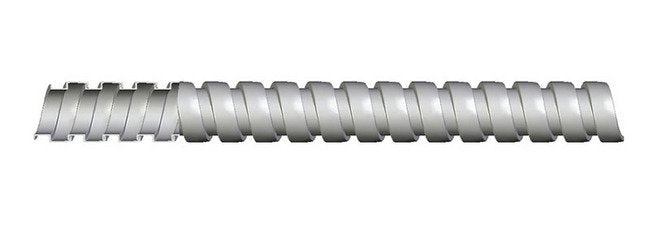

The Flexible Metal Conduit Type DSL7 is designed for light-duty, general electrical applications, offering exceptional flexibility with an inside diameter ranging from 0.430 to 0.450 inches. Constructed from continuously interlocked hot-dipped zinc galvanized steel, it provides a reliable raceway for wiring in diverse settings. This conduit is ideal for applications requiring tight bends and mechanical protection, with a maximum temperature tolerance of +450°F. Easy to install with standard armored cable or flexible conduit connectors, it meets RoHS and WEEE certifications, making it environmentally friendly. Special sizes and custom-cut lengths available upon request.
Product Specifications
Application 0
Ideal for Applications Where Tight Bends are Required. Easily Installed for Mechanical Protection+450°F Maximum Temperature
Installation 0
Installs easily with standard armored cable or flexible conduit connectors. Exceptional flexibility for tight "U" bend radius. Designed to be used for specific applications where agency approvals are not required. Special sizes available upon request. Available in custom-cut lengths. +450ºF maximum temperature.
Specifications Approx Inside Bend Radius
1.5 in | 38.1 mm
Specifications Approx Weight Per 100 Ft
10 lbs | 4.54 kg
Specifications Core Material
Galvanized Steel
Specifications Cross Reference
95202 | SF | SF-7/16 | SL-716
Specifications Industry Certifications
RoHS WEEE
Specifications Inside Diameter
0.430 to 0.450 in | 10.922 to 11.430 mm
Specifications Jacket Material
None
Specifications Nominal Size
7/16 in | 11 mm
Specifications Outside Diameter
0.545 to 0.565 in | 13.843 to 14.351 mm
Specifications Standard Length Coil
200 ft | 60.96 m
Specifications Type
DSL
