Flexible Non-Metallic Conduit - Liquid-Tight NMUA

Name: Flexible Non-Metallic Conduit - Liquid-Tight NMUA
Brand: Anamet Electrical, Inc.
SKU: LIQ-8c0d1e
Price: 69.99 USD
Availability: OutOfStock

SKU:LIQ-8c0d1e

Durable and safe Flexible Non-Metallic Conduit with IP 67 rating, ideal for diverse applications. Compliant with NEC standards.

$69.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

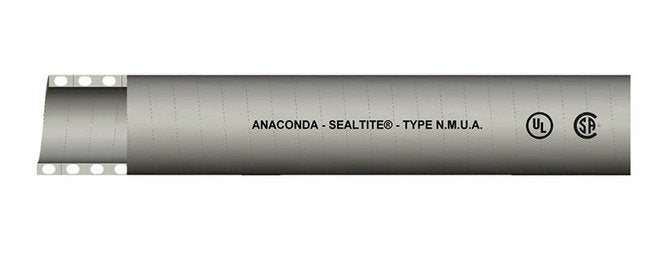

The Flexible Non-Metallic Conduit - Liquid-Tight NMUA is engineered for durability and safety in a wide range of applications. Made of non-metallic PVC material, this conduit is UL listed and CSA certified as Type 'B'. With an IP 67 rating when paired with approved end connectors, it ensures reliable performance in inside, outside, and corrosive environments. Compliant with NEC Article 356, this conduit offers a temperature range of -17ºF to +176ºF (-27ºC to +80ºC), making it suitable for various settings. Easy to install and suitable for direct burial, this conduit is ideal for institutional and commercial use.

Product Specifications

Application 0

General Purpose Non-Metallic-Smooth Inner/Outer WallTemperature Range: of -17ºF to +176ºF (-27ºC to +80ºC).

Installation 0

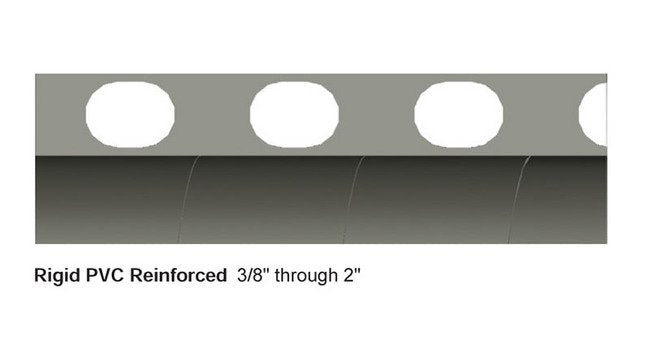

Conduit used with standard connectors for non-metallic conduit Type B for easy installation. IP 67 Rated when installed with approved connectors.Approved for both exposed and concealed locations. Rated for temperature ranges of -17ºF to +176ºF (-27ºC to +80ºC).Complies with NEC Article 356 and UL Standard 1660 File No. E-211327; CSA C22.2 File No. 020817. Easy to install and cuts easily.Manufactured in a full range of trade sizes from 3/8" through 2".Approved for direct burial and in concrete trade sizes 3/8" through 2".

Nec Articles 0

Article 250.102 Equipment Bonding Jumpers Article 250.134 (B) Equipment Grounding Article 300.22 (D) Information Technology Equipment Article 356 Liquid-Tight Flexible Nonmetallic Conduit (LFNC-B) Article 501.10 (B) (2) Class I Div. 2 Article 502.10 (A) (2) and (B) (2) Class II Div. 1 & 2 Article 503.10 (A) (3) and (B) Class III Div. 1 & 2 Article 620.21 Elevator Wiring MethodsArticle 645.5 (E) (2) Under Raised Floors

Specifications Approx Inside Bend Radius

8.0 in | 203.2 mm

Specifications Approx Weight Per 100 Ft

34 lbs | 15.42 kg

Specifications Color

GRAY

Specifications Core Material

Polyvinyl Chloride (PVC)

Specifications Cross Reference

55-09-45-01 | 6005-24-00 | 81042 | LFNC-B | NM | NM-14 | NMUA | NMUA-1-1/4

Specifications Electrical Trade Size

1-1/4 in | 35 mm

Specifications Industry Certifications

UL Listed & CSA Certified

Specifications Ingress Protection Ip Rating

Ingress Protection (IP) 65/66/67

Specifications Inside Diameter

1.380 to 1.410 in | 35.052 to 35.814 mm

Specifications Jacket Benefits

Liquid Tight | Oil Resistant

Specifications Jacket Material

Polyvinyl Chloride (PVC)

Specifications Length

50 ft | 15.24 m

Specifications Outside Diameter

1.635 to 1.660 in | 41.529 to 42.164 mm

Specifications Packaging

Standard Carton

Specifications Type

NMUA
