Flexible Steel Conduit - Type RWS Reduced Wall Steel Flexible Metal Conduit (FMC)

Name: Flexible Steel Conduit - Type RWS Reduced Wall Steel Flexible Metal Conduit (FMC)
Brand: Anamet Electrical, Inc.
SKU: FLE-68a6d9
Price: 189.99 USD
Availability: OutOfStock

SKU:FLE-68a6d9

Type RWS Flexible Steel Conduit: UL listed, high crush resistance, +450°F max temp, ideal for varied applications

$189.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

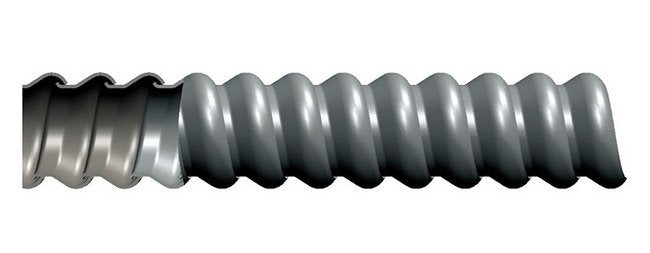

The Type RWS Flexible Steel Conduit is meticulously designed to offer a highly flexible raceway for wiring. Crafted from continuously interlocked hot-dipped zinc galvanized steel, this UL listed conduit ensures maximum safety and durability in electrical trade sizes ranging from 3/8" to 4". With an inside diameter of 1.250 to 1.300 inches and an outside diameter of 1.550 to 1.630 inches, it meets the high crush resistance requirements of UL1 and NEC 348, with a maximum temperature rating of +450°F. Perfect for exposed or concealed locations, elevator wiring, and more.

Product Specifications

Application 0

Flexible with High Crush Resistance Meets Requirements of UL1 and NEC 348+450°F Maximum Temperature

Installation 0

Uses standard flexible metal conduit connectors.Continuous grounding contact.UL Listed Standard #1;, File # E98045.Manufactured in size range from 3/8" through 4".Complies with Article 348, NEC.Permitted to be used in exposed and concealed locations (Article 348.10); enclosed motor leads (Article 430.245(B); elevators, escalators, wheelchair lifts (Article 620.21).+45086;F Maximum temperature.

Nec Articles 0

Article 250.102, 250.118(5) and 250.134(B) Equipment Grounding. Article 300.22 (D) Information Technology EquipmentArticle 348 Flexible Metal Conduit. (FMC)Article 501.30 (B) Class I Div. 2.Article 620.21 Elevator Wiring MethodsArticle 645.5 (E) (2) Under Raised Floors

Specifications Approx Inside Bend Radius

6.25 in | 158.75 mm

Specifications Approx Weight Per 100 Ft

63 lbs | 28.58 kg

Specifications Core Material

Galvanized Steel

Specifications Cross Reference

5505-40-00 | 55-09-17-02 | 55-09-17-06 | 69344 | BR-14 | RWS-1-1/4

Specifications Electrical Trade Size

1-1/4 in | 35 mm

Specifications Industry Certifications

UL Certification

Specifications Inside Diameter

1.250 to 1.300 in | 31.750 to 33.020 mm

Specifications Jacket Material

None

Specifications Length

200 ft | 60.96 m

Specifications Outside Diameter

1.550 to 1.630 in | 39.370 to 41.402 mm

Specifications Packaging

Standard Reels

Specifications Type

RWS
