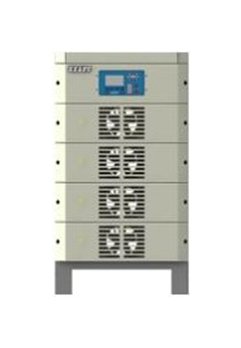

The FlexKraft Air-Cooled Rectifiers are engineered to deliver premium DC power and performance in demanding industrial environments. With features like Single and Multiple Outputs with Optional Polarity Reversal, upgradable power, and fail-safe operation, these rectifiers ensure 24/7 operation under harsh conditions. Offering output flexibility ranging from 0-120V and 0-30,000A, along with a variety of Control Options, the FlexKraft is designed to meet the most stringent process and application requirements. Save costs, boost competitiveness, and enhance energy efficiency with the space-saving, serviceable, and high-power factor design of FlexKraft.
Product Specifications
Specifications Alternating Current Ac Supply Voltage
480 VAC +/- 10%, 60 Hz, 3 Phase
Specifications Control Precision Voltagecurrent
<+/- 1 %
Specifications Cooling
Forced Air-Cooling
Specifications Derated Operation Ambient Temperature
0 to 122 ºF
Specifications Direct Current Dc Output Voltage
0 to 12 V | 0 to 15 V | 0 to 24 V | 0 to 30 V | 0 to 48 V | 0 to 60 V
Specifications Direct Current Dc Ripple
< 1% of rated output current at constant current mode in the entire range of regulation.
Specifications Duty Ratio
Designed for continuous operation at rated load up to 3300 ft altitude.
Specifications Electromagnetic Compatibility Emc Conformity
According to IEC 61000-6-4, Emissions, and IEC 61000-6-2, Immunity
Specifications Footprint Of Cabinet Depth Including Busbars On T
24 in
Specifications Footprint Of Cabinet Width Including Busbars On T
20 in
Specifications Height
34 "
Specifications High Power Factor
>0.93 at rated load means no reative power penalty on your electricity bill and less strain on your local AC supply.
Specifications Low Voltage Directive Lvd Conformity
According to IEC 50178
Specifications Manufacturer
KraftPowercon
Specifications Maximum Ambient Temperature
104 ºF
Specifications Maximum Relative Humidity
85 %
Specifications Modular Design

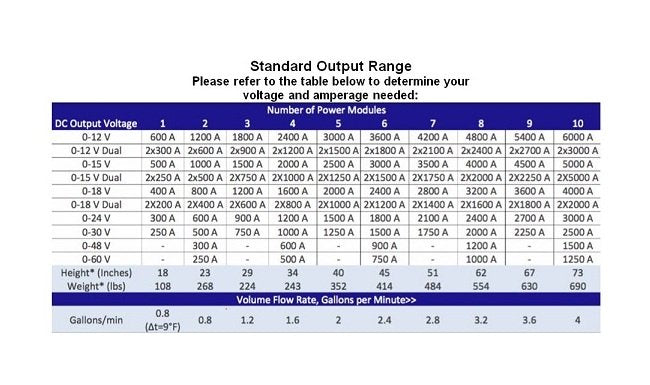

Any combination of power modules up to 120 VDC or 30,000 A can be supplied.
Specifications Number Of Power Modules
4
Specifications Options
*Analogue interface with four inputs and four outputs galvanically isolated. Control and status signals 0-10 VDC or 0/4-20 mA. | *Analogue/Digital interface. Two controls, and two status signals 0-10 VDC and two controls and two status signals 24 VDC. | *Digital interface with four inputs and four outputs. Control signals 24 VDC. Status signals via voltage free relay contacts; contact data 24 VDC or 24 VAC. Standard configuration: On/Off, Block/Run, Power On and Alarm. | *Electrically controlled AC breaker. | *External reference shunt, 60 mV. | *Polarity Reversal. | *Raise/Lower function. | *Remote control options: ControlKraft Touch or ControlKraft Digital | *RS-232C interface for control of one power supply. | *Standard configuration: Iset, Uset, lact and Uact: 0-10 VDC. On/Off, Block/Run, Power On and Alarm as digital signals: 24 VDC. | *Standard configuration: lset, Uset, lact and Uact: 4-20 mA
Specifications Output Current At 0 To 12 Volt Direct Current Dc
2400 A
Specifications Output Current At 0 To 15 Volt Direct Current Dc
2000 A
Specifications Output Current At 0 To 24 Volt Direct Current Dc
1200 A
Specifications Output Current At 0 To 30 Volt Direct Current Dc
1000 A
Specifications Output Current At 0 To 48 Volt Direct Current Dc
600 A
Specifications Output Current At 0 To 60 Volt Direct Current Dc
500 A
Specifications Power Factor At Rated Load
>0.93
Specifications Protection
Module Failure | Open circuit | Over-current | Over-temperature | Over-voltage | Short circuit
Specifications Protection Class
IP 32
Specifications Regulation Range
Stepless at constant voltage or current 0-100 %
Specifications Ripple
Less than 2% of rated output current in the entire range of regulation. Typical value at nominal output current is less than 0.2%. This standard feature is perfect for ripple sensitive processes.
Specifications Serviceable
Simple design, easy accessibility, and self-diagnosing power modules makes the FlexKraft easy to trouble-shoot, service and repair.
Specifications Space Saving
Compact design and capability to stack several units in one tower makes efficient use of shop floor space.
Specifications Efficiency At Rated Output
0.90
Specifications Upgradable Output Power
If your future power requirements change, don't buy a new rectifier, simply add more power modules to your FlexKraft or reconfigure your existing FlexKraft to meet your updated requirements.
Specifications Weight
243 lbs
