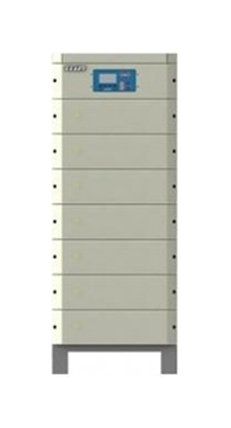

FlexKraft High-Efficiency Water-Cooled Rectifiers
FlexKraft High-Efficiency Water-Cooled Rectifiers
SKU:FLE-c2ec86
Premium DC power for industrial applications. High-efficiency, modular design, and fail-safe operation for demanding environments.
Regular price
$7,999.99
Regular price
Sale price
$7,999.99
Unit price
per
Initiate Order
FlexKraft High-Efficiency Water-Cooled Rectifiers
$7,999.99
Quantity: 1
Claim Your Seller Account
FlexKraft High-Efficiency Water-Cooled Rectifiers
$7,999.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The FlexKraft High-Efficiency Water-Cooled Rectifiers are engineered to deliver premium DC power and performance in challenging industrial settings. Designed for 24/7 continuous operation in harsh conditions, these rectifiers boast Single and Multiple Outputs with Optional Polarity Reversal, upgradable power capacity, and fail-safe operation. With a fully sealed cabinet to shield power modules from harsh elements, these rectifiers are ideal for corrosive environments. Featuring a modular design, output ranging from 0-120V and 0-30,000A, and a variety of Control Options, the FlexKraft system offers flexibility to tailor solutions to your precise process and application needs. Experience cost savings, enhanced competitiveness, reduced energy consumption, lower maintenance costs, increased output, and improved product quality with the FlexKraft High-Efficiency Water-Cooled Rectifiers.
Product Specifications
Specifications Alternating Current Ac Supply Voltage
480 VAC +/- 10%, 60 Hz, 3 Phase
Specifications Control Precision Voltagecurrent
<+/- 1 %
Specifications Cooling
Water-Cooling
Specifications Direct Current Dc Output Voltage
0 to 12 V | 0 to 15 V | 0 to 24 V | 0 to 30 V
Specifications Direct Current Dc Ripple
< 1% of rated output current at constant current mode in the entire range of regulation.
Specifications Duty Ratio
Designed for continuous operation at rated load up to 3300 ft altitude.
Specifications Electromagnetic Compatibility Emc Conformity
According to IEC 61000-6-4, Emissions, and IEC 61000-6-2, Immunity
Specifications Footprint Of Cabinet Depth Including Busbars On T
24 in
Specifications Footprint Of Cabinet Width Including Busbars On T
20 in
Specifications Height
51 "
Specifications High Power Factor
>0.93 at rated load means no reative power penalty on your electricity bill and less strain on your local AC supply.
Specifications Low Voltage Directive Lvd Conformity
According to IEC 50178
Specifications Manufacturer
KraftPowercon
Specifications Maximum Ambient Temperature
122 ºF
Specifications Modular Design

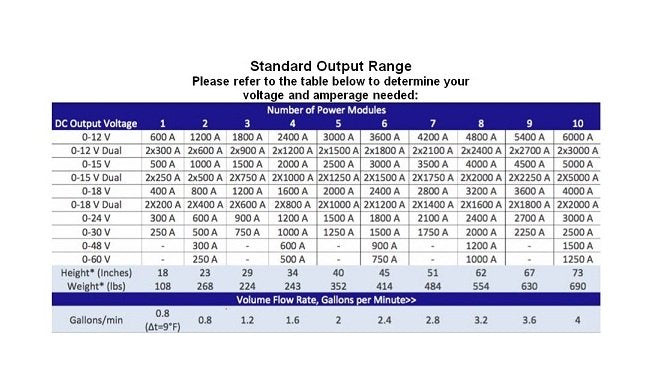

Any combination of power modules up to 120 VDC or 30,000 A can be supplied.
Specifications Number Of Power Modules
7
Specifications Options
*Analogue interface with four inputs and four outputs galvanically isolated. Control and status signals 0-10 VDC or 0/4-20 mA. | *Analogue/Digital interface. Two controls, and two status signals 0-10 VDC and two controls and two status signals 24 VDC. | *Digital interface with four inputs and four outputs. Control signals 24 VDC. Status signals via voltage free relay contacts; contact data 24 VDC or 24 VAC. Standard configuration: On/Off, Block/Run, Power On and Alarm. | *Electrically controlled AC breaker. | *External reference shunt, 60 mV. | *Polarity Reversal. | *Raise/Lower function. | *Remote control options: ControlKraft Touch or ControlKraft Digital | *RS-232C interface for control of one power supply. | *Standard configuration: Iset, Uset, lact and Uact: 0-10 VDC. On/Off, Block/Run, Power On and Alarm as digital signals: 24 VDC. | *Standard configuration: lset, Uset, lact and Uact: 4-20 mA
Specifications Output Current At 0 To 12 Volt Direct Current Dc
4200 A
Specifications Output Current At 0 To 15 Volt Direct Current Dc
3500 A
Specifications Output Current At 0 To 24 Volt Direct Current Dc
2100 A
Specifications Output Current At 0 To 30 Volt Direct Current Dc
1750 A
Specifications Power Factor At Rated Load
>0.93
Specifications Protection
Module Failure | Open circuit | Over-current | Over-temperature | Over-voltage | Short circuit
Specifications Protection Class
IP 44
Specifications Regulation Range
Stepless at constant voltage or current 0-100 %
Specifications Ripple
Less than 2% of rated output current in the entire range of regulation. Typical value at nominal output current is less than 0.2%. This standard feature is perfect for ripple sensitive processes.
Specifications Serviceable
Simple design, easy accessibility, and self-diagnosing power modules makes the FlexKraft easy to trouble-shoot, service and repair.
Specifications Space Saving
Compact design and capability to stack several units in one tower makes efficient use of shop floor space.
Specifications Efficiency At Rated Output
0.90
Specifications Upgradable Output Power
If your future power requirements change, don't buy a new rectifier, simply add more power modules to your FlexKraft or reconfigure your existing FlexKraft to meet your updated requirements.
Specifications Volume Flow Rate
2.8 gpm
Specifications Weight
484 lbs
