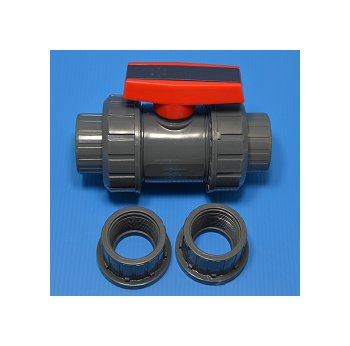

FlexPVC® 1-1/2" PVC Ball Valve - 150 psi Working Pressure, FNPT Ends
FlexPVC® 1-1/2" PVC Ball Valve - 150 psi Working Pressure, FNPT Ends
SKU:PVC-b2b1dc
FlexPVC® 1-1/2" PVC Ball Valve - Reliable, compact design, 150 psi working pressure, FNPT ends.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
FlexPVC® 1-1/2" PVC Ball Valve - 150 psi Working Pressure, FNPT Ends
$24.99
Quantity: 1
Claim Your Seller Account
FlexPVC® 1-1/2" PVC Ball Valve - 150 psi Working Pressure, FNPT Ends
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The FlexPVC® 1-1/2" PVC Ball Valve is a reliable solution for fluid control in various applications. With a working pressure of 150 psi at 73°F and FNPT ends, this compact valve offers ease of installation and efficient performance. Crafted with durable materials and featuring an EPDM seal and O-ring, this valve ensures reliable operation within a temperature range of 40°F to 125°F. Designed for seamless integration into existing systems, this valve is a dependable choice for both consumer and institutional purposes.
Product Specifications
Additional Information Additional Information
Rated temperature range, 40F to 125F continuous, up to 140F for short periods. EPDM seal and O-ring.therefore cut out = 4.435" for splicing into existing lines. Imported, Made in CHINA.This is an unrated valve.
Technical Specs Brands
FlexPVC®
Technical Specs Country Of Origin
China
Technical Specs Cut Out
4.435 in
Technical Specs Length
7.115 in
Technical Specs Rated Temperature
40 to 125 ºF
Technical Specs Size
1-1/2 in
Technical Specs Socket Depth
1.34 in
Technical Specs Test Pressure At 73 Degree Fahrenheit F
225 psi
Technical Specs Thread Type
Female National Pipe Thread (FNPT)
Technical Specs Working Pressure At 73 Degree Fahrenheit F
150 psi
