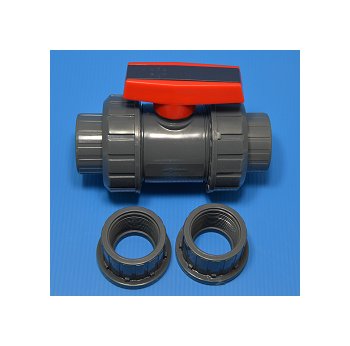

FlexPVC® 1 Inch PVC Ball Valve, 150 psi @ 73°F
FlexPVC® 1 Inch PVC Ball Valve, 150 psi @ 73°F
SKU:PVC-f4498a
High-quality 1" PVC Ball Valve, 150 psi @ 73°F, slip socket & FNPT ends, easy to operate, durable design.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
FlexPVC® 1 Inch PVC Ball Valve, 150 psi @ 73°F
$24.99
Quantity: 1
Claim Your Seller Account
FlexPVC® 1 Inch PVC Ball Valve, 150 psi @ 73°F
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The FlexPVC® 1 Inch PVC Ball Valve is a superior quality control valve with slip socket and FNPT ends. Designed for efficiency, it offers a working pressure of 150 psi at 73°F and a test pressure of 225 psi. With a compact build and a red handle for easy operation, this valve ensures reliable performance for a wide range of applications.
Product Specifications
Additional Information Additional Information
Rated temperature range, 40F to 125F continuous, up to 140F for short periods. EPDM seal and O-ring.therefore cut out = 3.537" for splicing into existing lines. Imported, Made in CHINA
Technical Specs Brands
FlexPVC®
Technical Specs Country Of Origin
China
Technical Specs Cut Out
3.537 in
Technical Specs Length
5.747 in
Technical Specs Rated Temperature
40 to 125 ºF
Technical Specs Size
1 in
Technical Specs Socket Depth
1.105 in
Technical Specs Test Pressure At 73 Degree Fahrenheit F
225 psi
Technical Specs Thread Type
Female National Pipe Thread (FNPT)
Technical Specs Working Pressure At 73 Degree Fahrenheit F
150 psi
