FlexPVC® 2" PVC Expansion Joint for Sch 40/80 Pipe
FlexPVC® 2" PVC Expansion Joint for Sch 40/80 Pipe
SKU:PVC-4875b1
FlexPVC® 2" PVC Expansion Joint for Sch 40/80 Pipe. Enhances piping system flexibility, noise reduction, and vibration dampening. Chemically resistant Neoprene Elastomer. Suitable for vacuum service.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
FlexPVC® 2" PVC Expansion Joint for Sch 40/80 Pipe
$24.99
Quantity: 1
Claim Your Seller Account
FlexPVC® 2" PVC Expansion Joint for Sch 40/80 Pipe
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

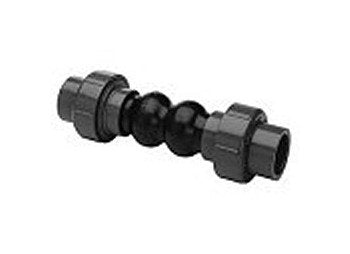

The FlexPVC® 2" PVC Expansion Joint is designed for 2" Sch 40/80 PVC pipes, facilitating expansion, contraction, and movement of piping systems. With a pressure rating of 150 psi at 73°F/23°C, this bellows-type joint features a Chemically Resistant Neoprene Elastomer and Double Spherical Arch Bellows for enhanced movement capability. The double union end connections with strong buttress thread union nuts ensure durability and ease of installation. Internal nylon cord reinforcement adds to its reliability. Suitable for vacuum service, this joint aids in noise and vibration dampening, making it a reliable choice for industrial applications.
Product Specifications
Features Features
Convenient, Double Union End Connections with Strong, Buttress Thread Union NutsInternal Nylon Cord Reinforced Elastomer Bellows TubeChemically Resistant Neoprene Elastomer with Optional EPDM Tube AvailableDouble Spherical Arch Bellows Provides Improved Movement CapabilitySuitable for Vacuum Service
Technical Specs Brands
FlexPVC®
Technical Specs Connection Type
Slip Socket
Technical Specs Material
PVC (Polyvinyl Chloride)
Technical Specs Pipe Schedule
40 | 80
Technical Specs Pipe Size
2 in
Technical Specs Pressure Rating At 73 Degree Fahrenheit F23 Degr
150 psi
Technical Specs Socket Material
Neoprene
Technical Specs Type
Bellows
