FlexPVC 3in PVC Expansion Joint for Sch 40/80 Pipe

Name: FlexPVC 3in PVC Expansion Joint for Sch 40/80 Pipe
Brand: FlexPVC
SKU: PVC-8f41b6
Price: 39.99 USD
Availability: OutOfStock

SKU:PVC-8f41b6

Enhance piping system flexibility with our 3in PVC Expansion Joint for Sch 40/80 Pipe. Durable, chemically resistant, and noise-dampening design.

$39.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

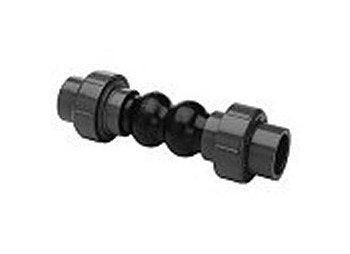

The FlexPVC 3-inch PVC Expansion Joint is specifically engineered for Sch 40/80 PVC pipe systems, offering exceptional flexibility to accommodate expansion, contraction, lateral, and angular movements. Crafted with durable PVC material and neoprene components, this expansion joint ensures noise and vibration dampening. Its double union end connections with buttress thread union nuts and internal nylon cord reinforced elastomer bellows tube provide robust performance. With a pressure rating of 150 psi at 73°F/23°C, this expansion joint is chemically resistant and suitable for vacuum services. The innovative design featuring a double spherical arch bellows enables superior movement capability, making it a reliable choice for various applications.

Product Specifications

Features Features

Convenient, Double Union End Connections with Strong, Buttress Thread Union NutsInternal Nylon Cord Reinforced Elastomer Bellows TubeChemically Resistant Neoprene Elastomer with Optional EPDM Tube AvailableDouble Spherical Arch Bellows Provides Improved Movement CapabilitySuitable for Vacuum Service

Technical Specs Brands

FlexPVCÂ®

Technical Specs Connection Type

Slip Socket

Technical Specs Material

PVC (Polyvinyl Chloride)

Technical Specs Pipe Schedule

40 | 80

Technical Specs Pipe Size

3 in

Technical Specs Pressure Rating At 73 Degree Fahrenheit F23 Degr

150 psi

Technical Specs Socket Material

Neoprene

Technical Specs Type

Bellows

FlexPVC 3in PVC Expansion Joint for Sch 40/80 Pipe
