Flo King BX1200 Filter System
Flo King BX1200 Filter System
SKU:FIL-a0e669
Enhance industrial filtration with the Flo King BX1200 Filter System. Reliable, durable, and easy to maintain for optimal performance.
Regular price
$603.00
Regular price
Sale price
$603.00
Unit price
per
Initiate Order
Flo King BX1200 Filter System
$603.00
Quantity: 1
Claim Your Seller Account
Flo King BX1200 Filter System
$603.00
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Flo King BX1200 Filter System is a robust filtration solution designed for demanding industrial environments. With a flow rate of 1200 gallons per hour, this system features a motor with CPVC construction, ensuring durability and reliable performance. The PTFE-covered stainless-steel shaft and epoxy-coated, TEFC, thermally protected motor make it suitable for heavy-duty use. The compact design allows for easy installation in various tank sizes, and its compatibility with a range of filter sizes makes maintenance hassle-free. The BX1200 is preassembled and includes essential accessories for immediate operation, making it the ideal choice for efficient and effective filtration processes.
Product Specifications
Note Note

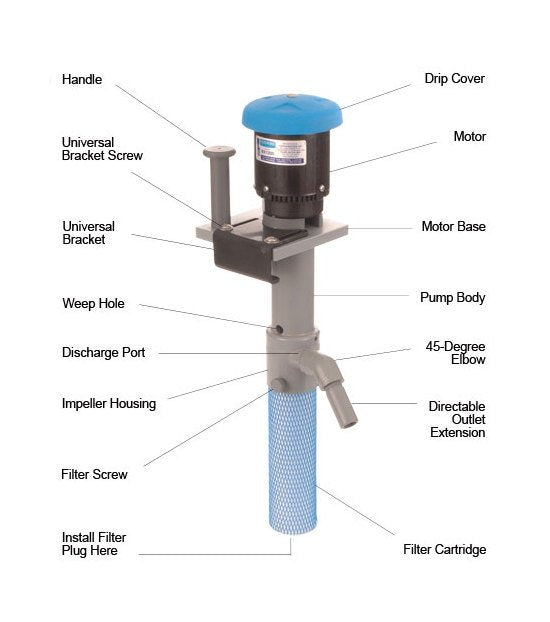

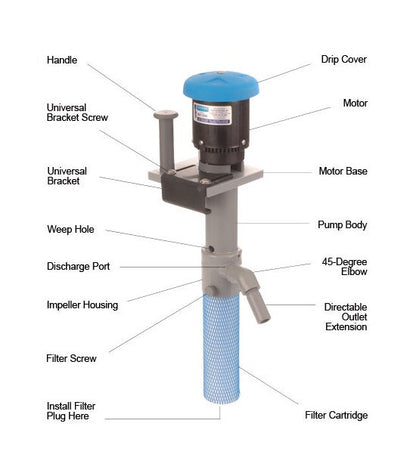

Running Pump Dry Does Not Damage Motor, Pump, Seals or BearingsThe Nut-Style Filter Holder allows you to change filter cartridges without loosening the Filter Screws on the Flo King pump. Just unscrew Threaded Nut from bottom of Stem, remove old cartridge, install new cartridge, tighten Nut and resume filtration.

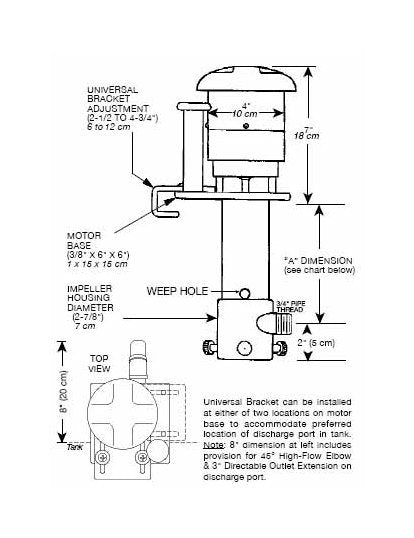

Specifications Dimension A
4-1/2 " | 11 cm
Specifications Flow Rate
1200 gallons per hour (4500 liters per hour) at 60 Hz
Specifications Motor Features
Epoxy coated, TEFC, Thermally Protected
Specifications Motor Power
1/12 hp | 60 W
Specifications Motor Rating
115 V, 2.6 A, 60 Hz | 230 V, 1.3 A, 50/60 Hz
Specifications Motor Speed
3000 rpm
Specifications Optional Filter Holder
NFH10 Nut-Style, 10" Length | NFH15 Nut-Style, 15" Length | NFH20 Nut-Style, 20" Length
Specifications Phase
Single
Specifications Pressure
12 feet (3.6 meters) of head pressure
Specifications Price
603.00 USD
Specifications Pump Materials Of Construction
CPVC
Specifications Shaft Material
PTFE-covered 303 stainless-steel (Standard)
Specifications Weight
10.0 lbs | 4.5 kg
