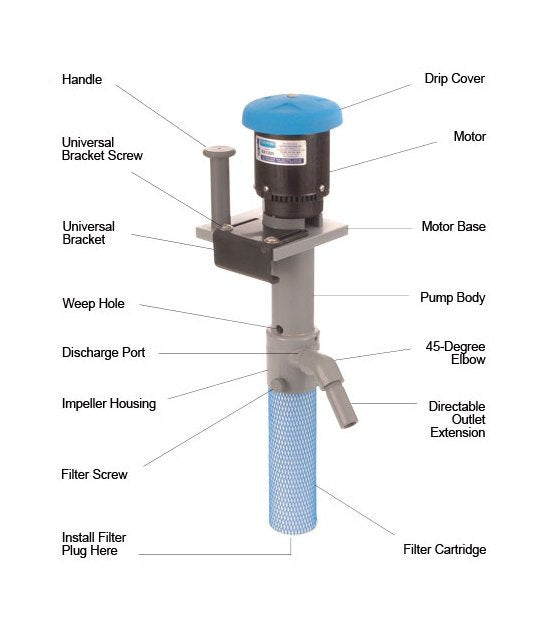

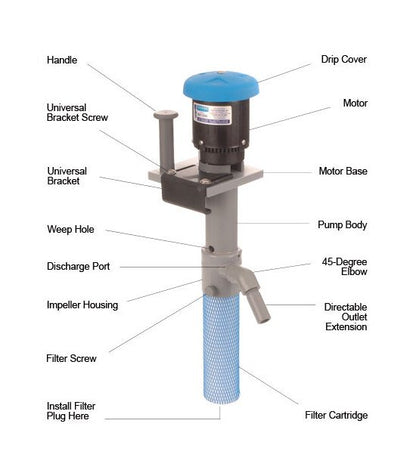

The Flo King BX1200 Filter System is an industrial-grade powerhouse designed for optimal filtration efficiency. With a flow rate of 1200 gallons per hour, this system is equipped with a durable CPVC pump and a PTFE-covered stainless-steel shaft to ensure reliable performance. The 1/12th HP motor operates at 3000 rpm, delivering 12 feet of head pressure. This complete portable filtration solution includes essential accessories for immediate use and is compatible with a range of filter sizes. Suitable for various tank depths, this system is a versatile choice for metal finishing solutions.
Product Specifications
Note Note

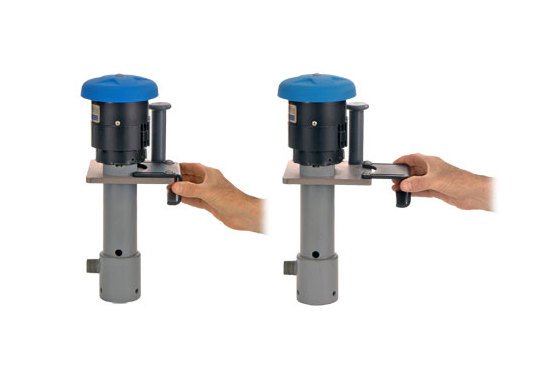

Running Pump Dry Does Not Damage Motor, Pump, Seals or BearingsThe Nut-Style Filter Holder allows you to change filter cartridges without loosening the Filter Screws on the Flo King pump. Just unscrew Threaded Nut from bottom of Stem, remove old cartridge, install new cartridge, tighten Nut and resume filtration.

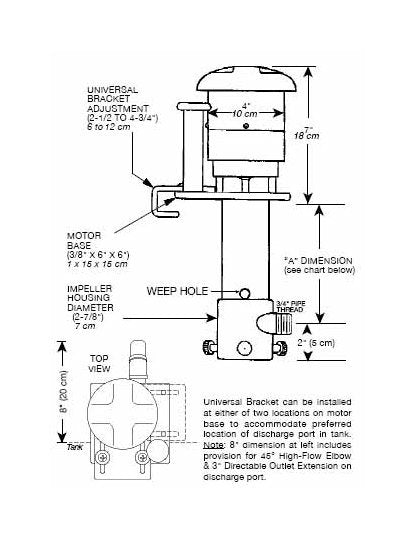

Specifications Dimension A
9-1/16 " | 23 cm
Specifications Flow Rate
1200 gallons per hour (4500 liters per hour) at 60 Hz
Specifications Motor Features
Epoxy coated, TEFC, Thermally Protected
Specifications Motor Power
1/12 hp | 60 W
Specifications Motor Rating
115 V, 2.6 A, 60 Hz | 230 V, 1.3 A, 50/60 Hz
Specifications Motor Speed
3000 rpm
Specifications Optional Filter Holder
NFH10 Nut-Style, 10" Length | NFH15 Nut-Style, 15" Length | NFH20 Nut-Style, 20" Length
Specifications Phase
Single
Specifications Pressure
12 feet (3.6 meters) of head pressure
Specifications Price
630.00 USD
Specifications Pump Materials Of Construction
CPVC
Specifications Shaft Material
PTFE-covered 303 stainless-steel (Standard)
Specifications Weight
10.0 lbs | 4.5 kg
