Flo King BX1200 In-Tank Filter System
Flo King BX1200 In-Tank Filter System
SKU:FIL-5bcaf4
Efficiently filter up to 1200 GPH with the Flo King BX1200 In-Tank System, featuring durable construction and easy maintenance for continuous industrial use.
Regular price
$732.00
Regular price
Sale price
$732.00
Unit price
per
Initiate Order
Flo King BX1200 In-Tank Filter System
$732.00
Quantity: 1
Claim Your Seller Account
Flo King BX1200 In-Tank Filter System
$732.00
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Flo King BX1200 In-Tank Filter System is a reliable filtration solution with a flow rate of 1200 gallons per hour, customizable body lengths, and easy-to-attach filters. It features a 1/12th-HP motor, polypropylene pump construction, and PTFE-covered stainless-steel shaft for durability. With a motor power of 60W and an epoxy-coated, thermally protected design, it ensures efficient filtration in various industrial applications. The optional Nut-Style Filter Holder simplifies cartridge changes without disrupting pump operation, enhancing maintenance convenience.
Product Specifications
Note Note
Running Pump Dry Does Not Damage Motor, Pump, Seals or BearingsThe Nut-Style Filter Holder allows you to change filter cartridges without loosening the Filter Screws on the Flo King pump. Just unscrew Threaded Nut from bottom of Stem, remove old cartridge, install new cartridge, tighten Nut and resume filtration.

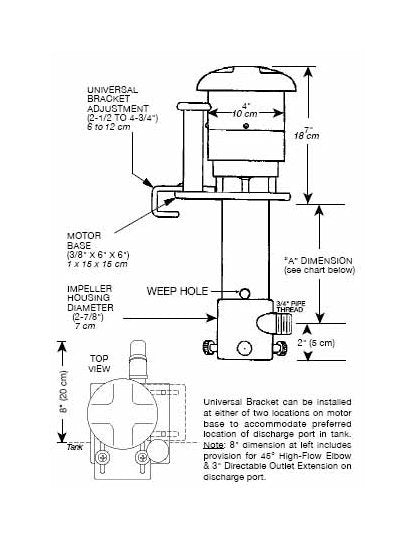

Specifications Dimension A
9-1/16 " | 23 cm
Specifications Flow Rate
1200 gallons per hour (4500 liters per hour) at 60 Hz
Specifications Motor Features
Epoxy coated, TEFC, Thermally Protected
Specifications Motor Power
1/12 hp | 60 W
Specifications Motor Rating
115 V, 2.6 A, 60 Hz | 230 V, 1.3 A, 50/60 Hz
Specifications Motor Speed
3000 rpm
Specifications Optional Filter Holder
NFH10 Nut-Style, 10" Length | NFH15 Nut-Style, 15" Length | NFH20 Nut-Style, 20" Length
Specifications Phase
Single
Specifications Pressure
12 feet (3.6 meters) of head pressure
Specifications Price
732.00 USD
Specifications Pump Materials Of Construction
Polypropylene
Specifications Shaft Material
PTFE-covered 303 stainless-steel (Standard)
Specifications Weight
10.0 lbs | 4.5 kg
