Flo King BX5000 In-Tank Filter System
Flo King BX5000 In-Tank Filter System
SKU:FIL-5c7afa
Efficient Flo King BX5000 In-Tank Filter System for large tanks, 5000 GPH flow rate, durable CPVC construction, 3/4hp motor, easy maintenance, ideal for industrial use.
Regular price
$1,353.00
Regular price
Sale price
$1,353.00
Unit price
per
Initiate Order
Flo King BX5000 In-Tank Filter System
$1,353.00
Quantity: 1
Claim Your Seller Account
Flo King BX5000 In-Tank Filter System
$1,353.00
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

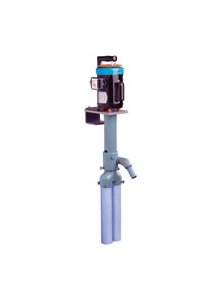

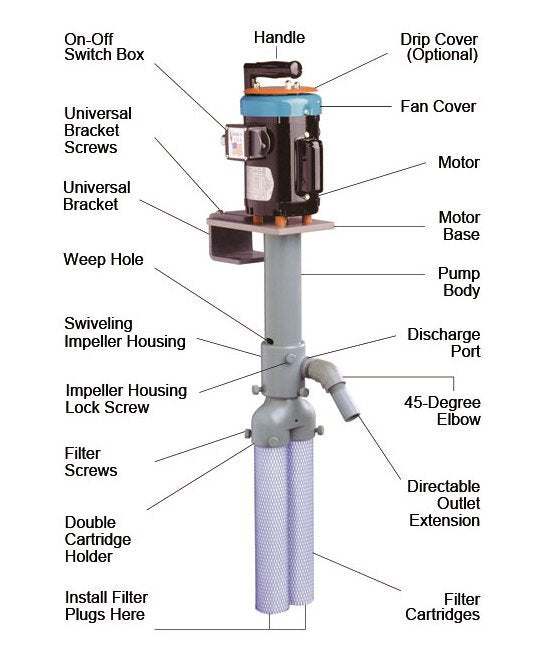

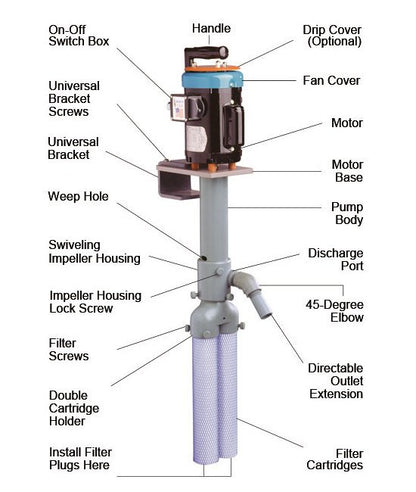

The Flo King BX5000 In-Tank Filter System is a robust filtration solution designed for large tanks, offering a flow rate of 5000 gallons per hour. With a CPVC pump construction and PTFE-covered stainless-steel shaft, this system ensures durability and efficient performance. The 3/4 hp motor with 560W power and thermally protected features delivers reliable agitation, making it suitable for industrial settings. Easy maintenance is facilitated by the included double cartridge holder and 360-degree swiveling impeller housing, allowing quick filter changes without downtime. Ideal for metal finishing solutions, the BX5000 comes preassembled, portable, and ready to operate, meeting the needs of demanding applications.
Product Specifications
Note Note

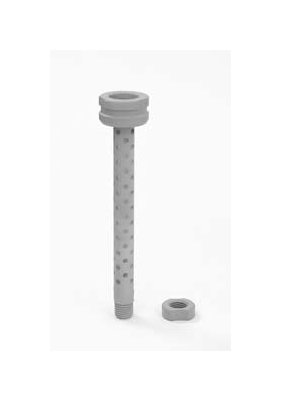

Running Pump Dry Does Not Damage Motor, Pump, Seals or BearingsThe Nut-Style Filter Holder allows you to change filter cartridges without loosening the Filter Screws on the Flo King pump. Just unscrew Threaded Nut from bottom of Stem, remove old cartridge, install new cartridge, tighten Nut and resume filtration.

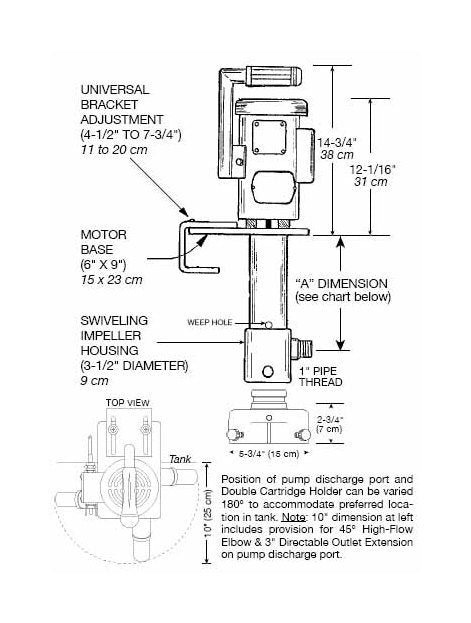

Specifications Dimension A
18-3/4 " | 48 cm
Specifications Flow Rate
5000 gallons per hour (19,000 liters per hour) at 60 Hz
Specifications Motor Features
Epoxy coated, TEFC, Thermally Protected
Specifications Motor Power
3/4 hp | 560 W
Specifications Motor Rating
110/220 V, 9.2/4.6 A, 50 Hz, 2850 rpm | 115/230 V, 9.6/4.8 A, 60 Hz, 3450 rpm
Specifications Optional Filter Holder
NFH10 Nut-Style, 10" Length | NFH15 Nut-Style, 15" Length | NFH20 Nut-Style, 20" Length
Specifications Phase
Single
Specifications Pressure
27 feet (8.2 meters) of head pressure
Specifications Price
1353.00 USD
Specifications Pump Materials Of Construction
CPVC
Specifications Shaft Material
PTFE-covered 303 stainless-steel (Standard)
Specifications Weight
29.0 lbs | 13.0 kg
