Flo King BX650 In-Tank Filter System
Flo King BX650 In-Tank Filter System
SKU:FIL-6f831b
Efficient CPVC Filtration System with 650 GPH Flow Rate, Ideal for Small to Intermediate Tanks
Regular price
$580.00
Regular price
Sale price
$580.00
Unit price
per
Initiate Order
Flo King BX650 In-Tank Filter System
$580.00
Quantity: 1
Claim Your Seller Account
Flo King BX650 In-Tank Filter System
$580.00
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

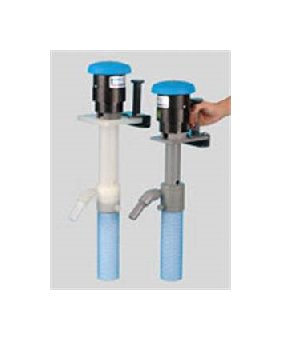

The Flo King BX650 In-Tank Filter System is a high-performance solution designed for small to intermediate-size tanks. With a flow rate of 650 GPH (2400 LPH), this system features a totally enclosed, fan-cooled motor for efficient filtration. It is constructed with CPVC pump materials and a PTFE-covered stainless-steel shaft, ensuring durability and chemical resistance. The motor operates at 115V, 2.6A, 60Hz, with 1/15 hp power. The BX650 is easy to use and can be stationary or portable, making it versatile for various tank setups. Additionally, it includes accessories like a heavy-duty handle, drip cover, and disposable filter cartridge for immediate use.
Product Specifications
Note Note

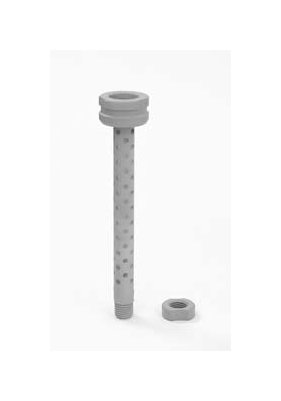

Running Pump Dry Does Not Damage Motor, Pump, Seals or BearingsThe Nut-Style Filter Holder allows you to change filter cartridges without loosening the Filter Screws on the Flo King pump. Just unscrew Threaded Nut from bottom of Stem, remove old cartridge, install new cartridge, tighten Nut and resume filtration.

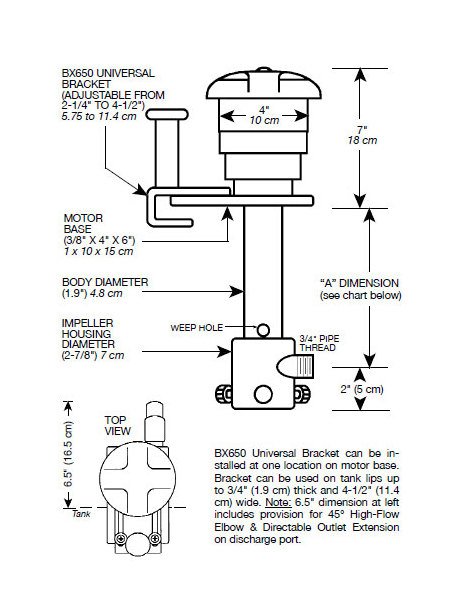

Specifications Dimension A
6-1/2 " | 17 cm
Specifications Flow Rate
650 gallons per hour (2400 liters per hour) at 60 Hz
Specifications Motor Features
Epoxy coated, TEFC, Thermally Protected
Specifications Motor Power
1/15 hp | 50 W
Specifications Motor Rating
115 V, 2.6 A, 60 Hz | 230 V, 1.3 A, 50/60 Hz
Specifications Motor Speed
3000 rpm
Specifications Optional Filter Holder
NFH10 Nut-Style, 10" Length | NFH15 Nut-Style, 15" Length | NFH20 Nut-Style, 20" Length | Note: Nut-Style Filter Holder results in a flow-rate reduction of 10%
Specifications Phase
Single
Specifications Pressure
10 feet (3 meters) of head pressure
Specifications Price
580.00 USD
Specifications Pump Materials Of Construction
CPVC
Specifications Shaft Material
PTFE-covered 303 stainless-steel (Standard)
Specifications Weight
9.0 lbs | 4.0 kg
