Flo King BX650 In-Tank Filter System
Flo King BX650 In-Tank Filter System
SKU:FIL-c32a4d
Efficiently filter fluids with Flo King BX650 In-Tank Filter System. High flow rate of 650 GPH, durable polypropylene construction. Versatile and complete filtration solution for industrial tanks.
Regular price
$681.00
Regular price
Sale price
$681.00
Unit price
per
Initiate Order
Flo King BX650 In-Tank Filter System
$681.00
Quantity: 1
Claim Your Seller Account
Flo King BX650 In-Tank Filter System
$681.00
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

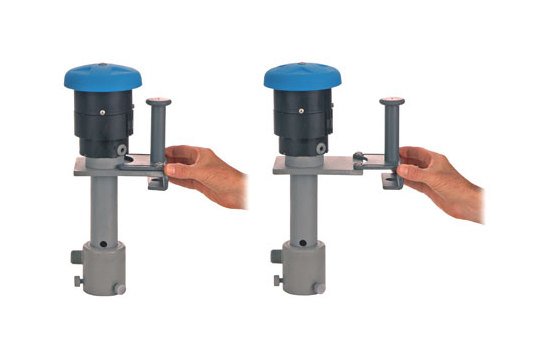

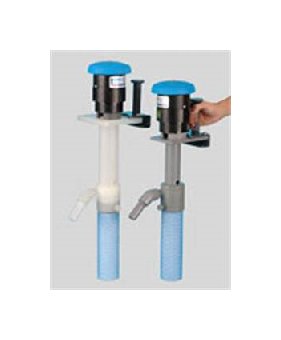

The Flo King BX650 In-Tank Filter System is designed for small to intermediate-size tanks, offering a flow rate of 650 GPH (2400 LPH). Built with high-quality polypropylene and PTFE-covered stainless steel components, this system ensures efficient filtration. With a motor power of 1/15 hp and a lightweight design, the BX650 is versatile for use in various tanks, supported by optional accessories like the Double Cartridge Holder and In-Tank Floating Skimmer. This complete system includes a disposable filter cartridge, drip cover, and universal bracket, providing an easy and effective solution for fluid management in industrial settings.
Product Specifications
Note Note

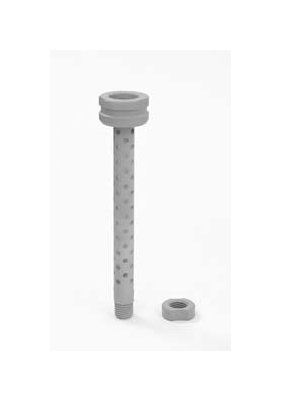

Running Pump Dry Does Not Damage Motor, Pump, Seals or BearingsThe Nut-Style Filter Holder allows you to change filter cartridges without loosening the Filter Screws on the Flo King pump. Just unscrew Threaded Nut from bottom of Stem, remove old cartridge, install new cartridge, tighten Nut and resume filtration.

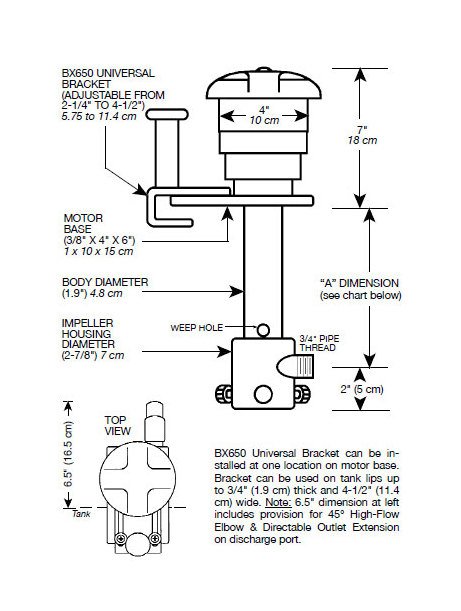

Specifications Dimension A
4-1/2 " | 11 cm
Specifications Flow Rate
650 gallons per hour (2400 liters per hour) at 60 Hz
Specifications Motor Features
Epoxy coated, TEFC, Thermally Protected
Specifications Motor Power
1/15 hp | 50 W
Specifications Motor Rating
115 V, 2.6 A, 60 Hz | 230 V, 1.3 A, 50/60 Hz
Specifications Motor Speed
3000 rpm
Specifications Optional Filter Holder
NFH10 Nut-Style, 10" Length | NFH15 Nut-Style, 15" Length | NFH20 Nut-Style, 20" Length
Specifications Phase
Single
Specifications Pressure
10 feet (3 meters) of head pressure
Specifications Price
681.00 USD
Specifications Pump Materials Of Construction
Polypropylene
Specifications Shaft Material
PTFE-covered 303 stainless-steel (Standard)
Specifications Weight
9.0 lbs | 4.0 kg
