Flo King BXL2500 Filter System with CPVC Pump
Flo King BXL2500 Filter System with CPVC Pump
SKU:FIL-e9b40d
Efficient Flo King BXL2500 Filter System designed for facilities with limited overhead clearance. Features a flow rate of 2500 GPH, CPVC pump construction, and PTFE-covered stainless-steel shaft.
Regular price
$1,518.00
Regular price
Sale price
$1,518.00
Unit price
per
Initiate Order
Flo King BXL2500 Filter System with CPVC Pump
$1,518.00
Quantity: 1
Claim Your Seller Account
Flo King BXL2500 Filter System with CPVC Pump
$1,518.00
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

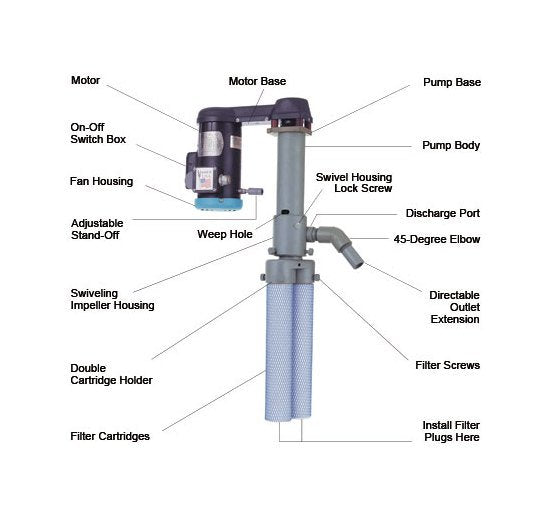

The Flo King BXL2500 Filter System is an ideal solution for facilities with limited overhead clearance. With a flow rate of 2500 gallons per hour, this system is designed for efficient filtration in metal finishing solutions. Constructed with CPVC pump materials and a PTFE-covered stainless-steel shaft, it ensures durability and chemical resistance. The motor features Epoxy coating, TEFC, and thermal protection for reliable operation. The BXL2500 comes complete with a double cartridge holder, Permacore Magnum reusable filter cartridges, and adjustable tank clamp, providing a ready-to-operate filtration solution adaptable to various tank configurations.
Product Specifications
Note Note
Running Pump Dry Does Not Damage Motor, Pump, Seals or BearingsThe Nut-Style Filter Holder allows you to change filter cartridges without loosening the Filter Screws on the Flo King pump. Just unscrew Threaded Nut from bottom of Stem, remove old cartridge, install new cartridge, tighten Nut and resume filtration.

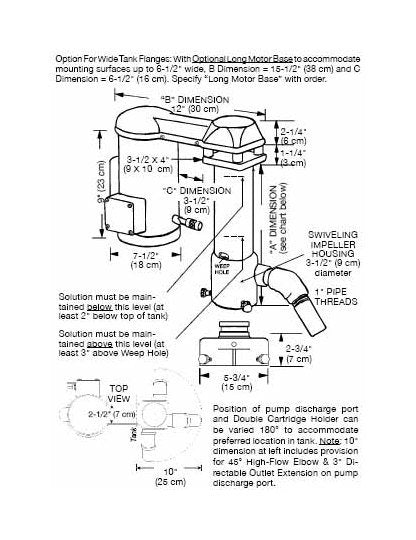

Specifications Dimension A
12-3/4 " | 32 cm
Specifications Flow Rate
2500 gallons per hour (9500 liters per hour) at 60 Hz
Specifications Motor Features
Epoxy coated, TEFC, Thermally Protected
Specifications Motor Power
1/3 hp | 250 W
Specifications Motor Rating
120 V, 6.0 A, 50/60 Hz, 2850 rpm | 240 V, 3.0 A, 50/60 Hz, 3450 rpm
Specifications Optional Filter Holder
NFH10 Nut-Style, 10" Length | NFH15 Nut-Style, 15" Length | NFH20 Nut-Style, 20" Length
Specifications Other Options

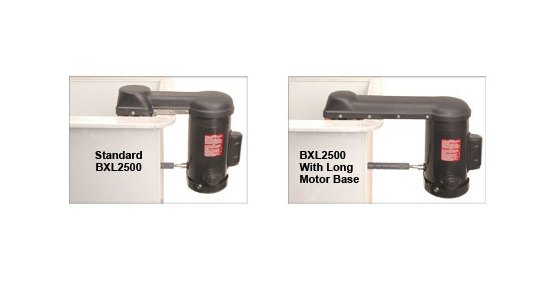

Optional Long Motor Base
Specifications Phase
Single
Specifications Pressure
27 feet (8.2 meters) of head pressure
Specifications Price
1518.00 USD
Specifications Pump Materials Of Construction
CPVC
Specifications Shaft Material
PTFE-covered 303 stainless-steel (Standard)
Specifications Weight
25.0 lbs | 11.0 kg
